Brand: Altronix | SKU: 552989

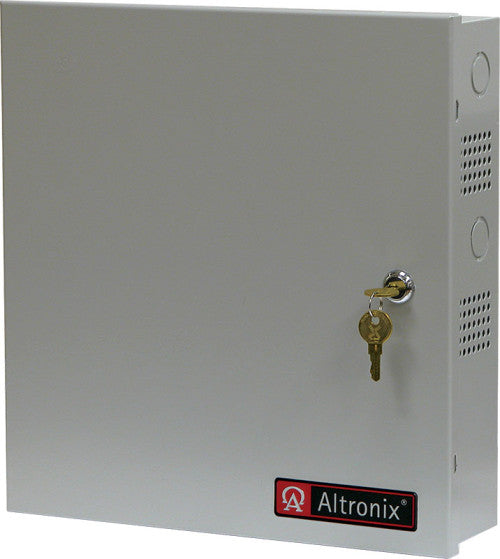

Altronix ALTV2416350CB | CCTV Power Supply, 16 PTC Outputs, 24VAC/28VAC @ 14A, 115VAC, BC300 Enclosure

$368.73

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

ALTV2416350CB AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Sixteen (16) PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.

Main Features

Main fuse rated @ 15A/32V.
AC power LED.

Specifications

Enclosure

Wall mount enclosure for indoor use.
Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
1/2" and 3/4" combination knockouts.

Input

115VAC, 50/60Hz, 2.7A.

Output

Sixteen (16) PTC protected outputs (auto-resettable).
24VAC @ 14A (350VA) supply current (0.875A per device, 2.5A max.) or 28VAC @ 12.5A (350VA) supply current (0.781A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Surge suppression.

Electrical

Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%
BTU/Hr (approx.):
24VAC: 172 BTU/Hr.
28VAC: 179 BTU/Hr.
System AC input VA requirement: 310.5VA.

Weights (approximate)

Product Weight	17.2 Lbs. (7.801 kg).
Shipping Weight	18.2 Lbs. (8.255 kg).
