Brand: Altronix | SKU: 274068

Altronix ALTV2416600 | CCTV Power Supply, 16 Fused Outputs, 24VAC/28VAC @ 28A, 115VAC, BC300 Enclosure

$506.04

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

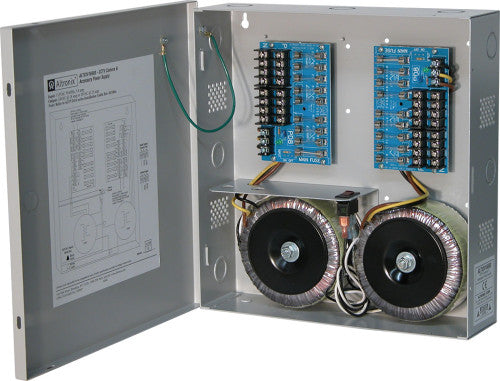

ALTV2416600 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Sixteen (16) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.

Main Features

Main fuse rated @ 15A/32V.
AC power LED.
Spare fuses provided. (all models w/primary and/or secondary fuses).

Specifications

Enclosure

Wall mount enclosure for indoor use.
Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
1/2" and 3/4" combination knockouts.

Input

115VAC, 50/60Hz, 5.4A.

Output

Sixteen (16) fuse protected outputs.
24VAC @ 28A (700VA) supply current (1.75A per device, 3.5A max.) or 28VAC @ 25A (700VA) supply current (1.563A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.

Electrical

Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%
BTU/Hr (approx.):
24VAC: 344 BTU/Hr.
28VAC: 358 BTU/Hr.
System AC input VA requirement: 621VA.

Weights (approximate)

Product Weight	24.1 Lbs. (10.9 kg).
Shipping Weight	25.1 Lbs. (11.4 kg).
