Brand: Altronix | SKU: 10216251

Altronix ALTV2416CBX220 | CCTV Power Supply, 16 PTC Class 2 Outputs, 24/28VAC @ 7A, 220VAC, BC300 Enclosure

$330.58

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix ALTV2416CBX220 | CCTV Power Supply, 16 PTC Class 2 Outputs, 24/28VAC @ 7A, 220VAC, BC300 Enclosure

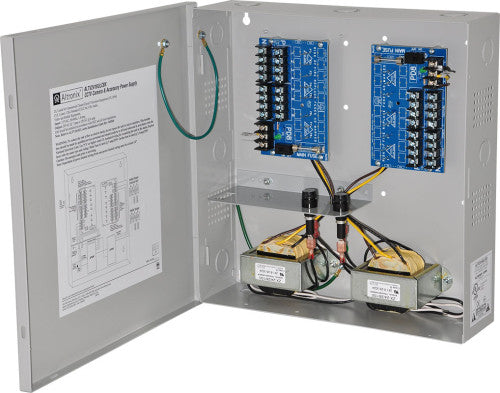

ALTV2416CBX220 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via sixteen (16) PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.

Altronix - ALTV2416CBX220 - Features and Specifications

INPUT
220VAC, 50/60Hz, 0.5A.
OUTPUT
Sixteen (16) PTC protected outputs.
24VAC @ 7A (170VA) or 28VAC @ 6A (170VA) supply current.
Outputs are rated @ 2.5A.

Specifications

Altronix - ALTV2416CBX220 - Enclosure

Wall mount enclosure for indoor use.
Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
1/2" and 3/4" combination knockouts.

Altronix - ALTV2416CBX220 - Temperature

Operating 0ºC to 49ºC (32ºF to 120ºF).
Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 101 BTU/Hr.
System AC input VA requirement: 110VA.

Altronix - ALTV2416CBX220 - Specifications

UNSPSC Code	43211700
Agency Listing	CE Compliant

Altronix - ALTV2416CBX220 - Weights (approximate)

Product Weight:	14.33 Lbs. (6.5 kg).
Shipping Weight	15.21 Lbs. (6.9 kg).

Documents and Downloads
