Brand: Altronix
|
SKU:
552998

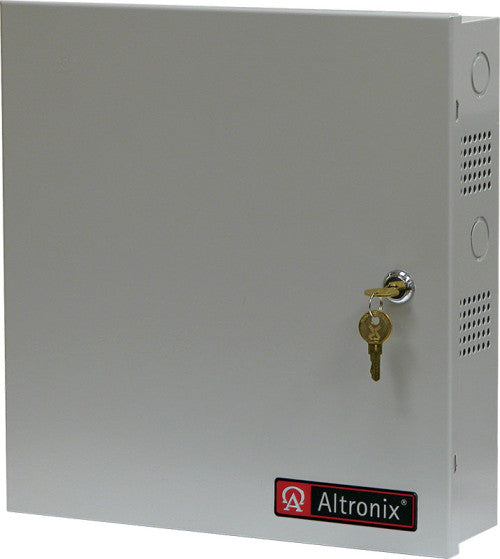

Altronix ALTV2416ULCBI | CCTV Power Supply, 16 Isolated PTC Class 2 Outputs, 24VAC @ 25A, 115VAC, BC300 Enclosure
Regular price
$675.25
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix ALTV2416ULCBI | CCTV Power Supply, 16 Isolated PTC Class 2...
Regular price
$675.25
Unit price
Description
Description
ALTV2416ULCBI Isolated CCTV Power Supply provides 24VAC distributed via sixteen (16) isolated Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
Main Features
- Illuminated master power disconnect circuit breaker with manual reset.
- Unit maintains camera synchronization.
- Spare fuses provided.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- 115VAC, 50/60Hz, 6A.
Output
- Sixteen (16) Class 2 Rated PTC protected outputs.
- 24VAC @ 25A (600VA) supply current.
- Outputs are rated @ 2.5A.
- Surge suppression.
Electrical
- Temperature:
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 304 BTU/Hr.
- System AC input VA requirement: 690VA.
Weights (approximate)
| Product Weight | 23.3 Lbs. (10.568 kg). |
|---|---|
| Shipping Weight | 24.3 Lbs. (11.022 kg). |
Agency Listings
| UL Listed For: Commercial CCTV Equipment (UL2044) | https://iq.ulprospector.com/en/profile?e=2863898 |
|---|---|
| cUL Listed For: CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment | https://iq.ulprospector.com/en/profile?e=2863922 |
