Brand: Altronix
|
SKU:
231042

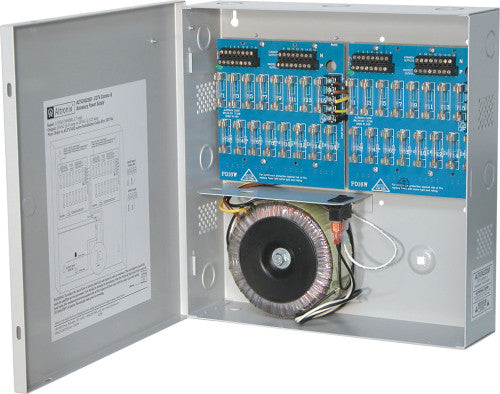

Altronix ALTV2432350 | CCTV Power Supply, 32 Fused Outputs, 24/28VAC @ 14A, 115VAC, BC300 Enclosure
Regular price
$433.57
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix ALTV2432350 | CCTV Power Supply, 32 Fused Outputs, 24/28VA...
Regular price
$433.57
Unit price
Description
Description
Altronix ALTV2432350 | CCTV Power Supply, 32 Fused Outputs, 24/28VAC @ 14A, 115VAC, BC300 Enclosure
ALTV2432350 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Thirty-Two (32) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.
ALTV2432350 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Thirty-Two (32) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.
Altronix - ALTV2432350 - Features and Specifications
- INPUT
- 115VAC, 50/60Hz, 2.7A.
- OUTPUT
- Thirty-Two (32) fuse protected outputs.
- 24VAC @ 14A (350VA) supply current (0.438A per device, 3.5A max.) or 28VAC @ 12.5A (350VA) supply current (0.391A per device, 3.5A max.).
- Outputs are rated @ 3.5A.
- Surge suppression.
Specifications
Specifications
Altronix - ALTV2432350 - Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Altronix - ALTV2432350 - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.):
- 24VAC: 172 BTU/Hr.
- 28VAC: 179 BTU/Hr.
- System AC input VA requirement: 310.5VA.
- Features
Altronix - ALTV2432350 - Specifications
| Environment Type | INDOOR |
|---|---|
| Mounting Type | WALL |
| Type | POWER SUPPLY |
| Voltage/Current Type | 115 VAC |
| UNSPSC Code | 39121031 |
| Agency Listing | CE Compliant |
Altronix - ALTV2432350 - Weights (approximate)
| Product Weight: | 15.9 Lbs. (7.212 kg). |
|---|---|
| Shipping Weight | 16.9 Lbs. (7.665 kg). |
