Brand: Altronix | SKU: 552993

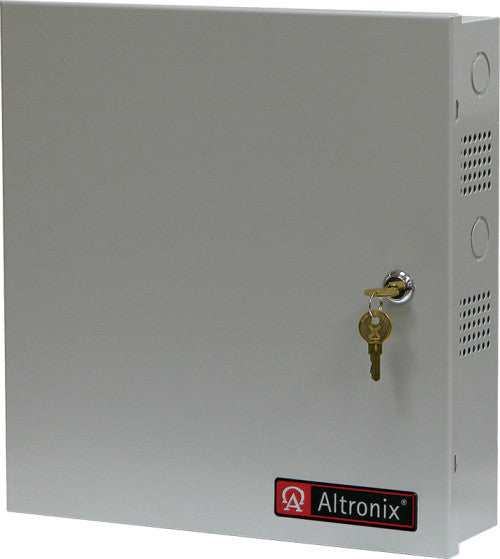

Altronix ALTV2432600CB | CCTV Power Supply, 32 PTC Outputs, 24/28VAC @ 28A, 115VAC, BC300 Enclosure

$558.18

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

ALTV2432600CB AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Thirty-Two (32) PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.

Main Features

Secondary fuse rated @ 10A/250V.
AC power LED.
Power ON/OFF switch.

Specifications

Enclosure

Wall mount enclosure for indoor use.
Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
1/2" and 3/4" combination knockouts.

Input

115VAC, 50/60Hz, 2.7A.

Output

Thirty-Two (32) PTC protected outputs (auto-resettable).
24VAC @ 28A (700VA) supply current (0.875A per device, 2.5A max.) or 28VAC @ 25A (700VA) supply current (0.781A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Surge suppression.

Electrical

Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%
BTU/Hr (approx.):
24VAC: 344 BTU/Hr.
28VAC: 358 BTU/Hr.
System AC input VA requirement: 310.5VA.

Weights (approximate)

Product Weight	24.6 Lbs. (11.158 kg).
Shipping Weight	25.6 Lbs. (11.611 kg).

Documents and Downloads
