Brand: Altronix
|
SKU:
742702

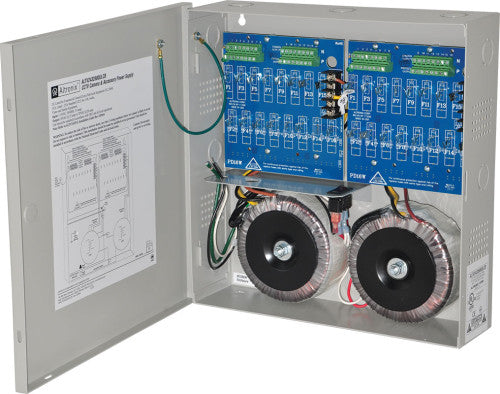

Altronix ALTV2432600ULCB | CCTV Power Supply, 32 PTC Class 2 Outputs, 24/28VAC @ 12.5A, 115VAC, BC300 Enclosure
Regular price
$560.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix ALTV2432600ULCB | CCTV Power Supply, 32 PTC Class 2 Output...
Regular price
$560.72
Unit price
Description
Description
ALTV2432600ULCB provides 24VAC or 28VAC distributed via Thirty-Two (32) Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
Main Features
- Secondary fuse rated @ 10A/250V.
- AC power LED.
- Power ON/OFF switch.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- 115VAC, 50/60Hz, 5.4A.
Output
- Thirty-Two (32) Class 2 Rated PTC protected power limited outputs (auto-resettable).
- 24VAC @ 25A (600VA) supply curren (0.781A per device, 2.5A max.) or 28VAC @ 20A (560VA) supply current (0.625A per device, 2.5A max.).
- Outputs are rated @ 2.5A.
- Surge suppression.
Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%
- BTU/Hr (approx.):
- 24VAC: 307 BTU/Hr.
- 28VAC: 287 BTU/Hr.
- System AC input VA requirement: 621VA.
Weights (approximate)
| Product Weight | 24.6 Lbs. (11.158 kg). |
|---|---|
| Shipping Weight | 25.6 Lbs. (11.611 kg). |
Agency Listings
| UL Listed For: Commercial CCTV Equipment (UL2044) | https://iq.ulprospector.com/en/profile?e=2863898 |
|---|---|
| cUL Listed For: CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment | https://iq.ulprospector.com/en/profile?e=2863922 |
Documents and Downloads
Documents and Downloads
- Altronix ALTV2432600ULCB Data Sheet
- Altronix ALTV2432600ULCB Data Sheet
- Altronix ALTV2432600ULCB Fichas Tecnicas
- Altronix ALTV2432600ULCB Installation Instructions
- Altronix ALTV2432600ULCB Altronix_ALTV2432600ULCB_CCTV_Power_Supply_Guia_de_Instalacion.pdf
- Altronix ALTV2432600ULCB CAD Drawing
- Altronix ALTV2432600ULCB Revit File
- Altronix ALTV2432600ULCB Lifetime Warranty
