Altronix ALTV244175CB220 | CCTV Power Supply, 4 PTC Outputs, 24/28V...
Regular price
$350.92
Unit price
Description
Description

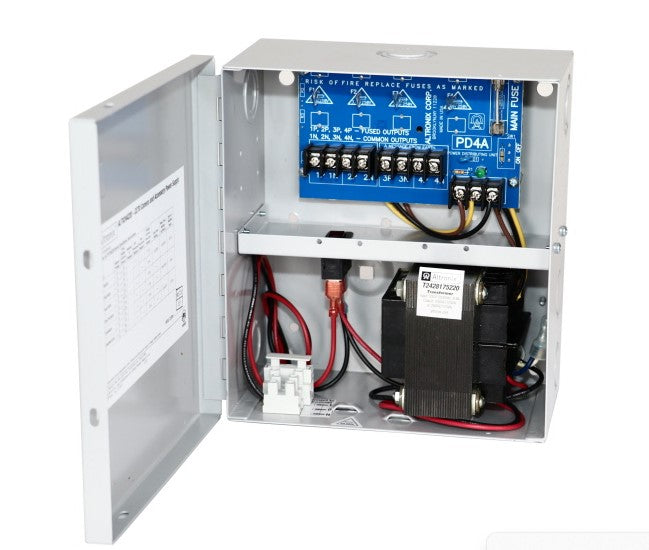

Altronix ALTV244175CB220 | CCTV Power Supply, 4 PTC Outputs, 24/28VAC @ 7.25A, 220VAC, BC100M Enclosure
ALTV244175CB220 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via four (4) PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.
ALTV244175CB220 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via four (4) PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.
Altronix - ALTV244175CB220 - Features and Specifications
- INPUT
- 220VAC, 50/60Hz, 0.8A.
- OUTPUT
- Four (4) PTC protected outputs (auto-resettable).
- 24VAC @ 7.25A (175VA) supply current (1.81A per device, 2.5A max.) or 28VAC @ 6.25A (175VA) supply current (1.56A per device, 2.5A max.).
- Outputs are rated @ 2.5A.
- Surge suppression.
Specifications
Specifications
Altronix - ALTV244175CB220 - Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 7.5"W x 8.5"H x 3.85"D (190.5 mm W x 216 mm H x 97.9 mm D).
- 1/2" and 3/4" combination knockouts.
Altronix - ALTV244175CB220 - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.):
- 24VAC: 89 BTU/Hr.
- 28VAC: 90 BTU/Hr.
- System AC input VA requirement: 176VA.
- Features
Altronix - ALTV244175CB220 - Specifications
| Sales Category | POWER SUPPLY |
|---|---|
| UNSPSC Code | 43211700 |
| Agency Listing | CE Compliant |
Altronix - ALTV244175CB220 - Weights (approximate)
| Product Weight: | 9.9 Lbs. (4.49 kg). |
|---|---|
| Shipping Weight | 10.5 Lbs. (4.76 kg). |
