Brand: Altronix
|
SKU:
461819
Altronix ALTV244175UL3 | CCTV Power Supply, 4 Fused Outputs, 24/28VAC @ 7A, 115VAC, BC200 Enclosure, includes 3-wire line cord
Regular price
$266.61
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix ALTV244175UL3 | CCTV Power Supply, 4 Fused Outputs, 24/28V...
Regular price
$266.61
Unit price
Description
Description

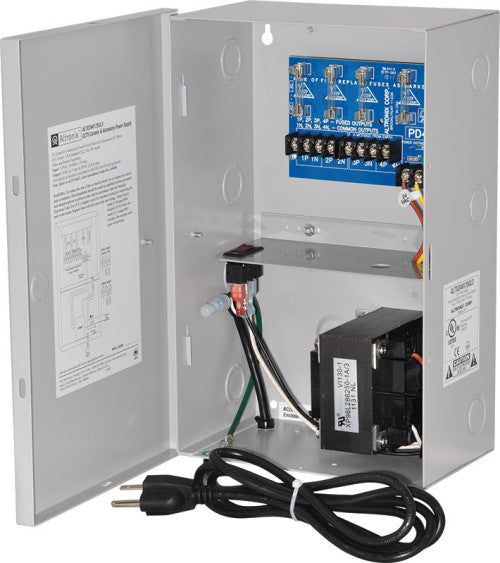

ALTV244175UL3 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via four (4) fuse protected power limited outputs for powering CCTV Cameras, heaters and other video accessories. Factory installed 3-wire line cord.
Main Features
- Secondary fuse rated @ 10A/250V.
- AC power LED.
- Power ON/OFF switch.
- Factory installed 3-wire line cord.
- Spare fuses provided. (all models w/primary and/or secondary fuses).
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 7.25"W x 12.25"H x 4.5"D (184 mm W x 311 mm H x 114 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- 115VAC, 50/60Hz, 2.7A.
Output
- Four (4) fuse protected outputs.
- 24VAC @ 7A (170VA) supply current (1.75A per device, 3.5A max.) or 28VAC @ 6.25A (175VA) supply current (1.56A per device, 3.5A max.).
- Outputs are rated @ 3.5A.
- Surge suppression.
Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%
- BTU/Hr (approx.):
- 24VAC: 86 BTU/Hr.
- 28VAC: 90 BTU/Hr.
- System AC input VA requirement: 340.5VA.
Weights (approximate)
| Product Weight | 10.8 Lbs. (4.898 kg). |
|---|---|
| Shipping Weight | 11.8 Lbs. (5.352 kg). |
Agency Listings
| UL Listed For: Commercial CCTV Equipment (UL2044) | https://iq.ulprospector.com/en/profile?e=2863898 |
|---|---|
| cUL Listed For: CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment | https://iq.ulprospector.com/en/profile?e=2863922 |
