Brand: Altronix
|
SKU:
742738

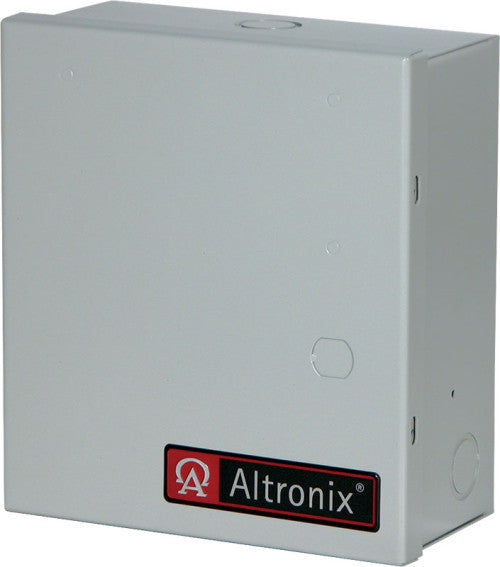

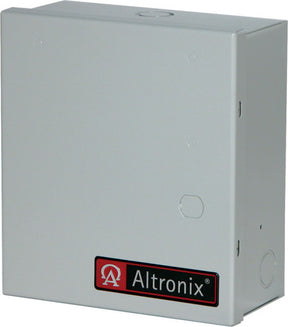

Altronix ALTV244CB220 | CCTV Power Supply, 4 PTC Outputs, 24/28VAC @ 4A, 220VAC, BC100 Enclosure
Regular price
$166.56
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix ALTV244CB220 | CCTV Power Supply, 4 PTC Outputs, 24/28VAC ...
Regular price
$166.56
Unit price
Description
Description
ALTV244CB220 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via four (4) PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.
Main Features
- Secondary fuse rated @ 5A/250V.
- AC power LED.
- Power ON/OFF switch.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- 220VAC, 50/60Hz, 0.5A.
Output
- Four (4) PTC protected outputs (auto-resettable).
- 24VAC @ 4A (100VA) supply current (1A per device, 2.5A max.) or 28VAC @ 3.5A (100VA) supply current (0.875A per device, 2.5A max.).
- Outputs are rated @ 2.5A.
- Surge suppression.
Electrical
- Temperature:
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%
- BTU/Hr (approx.):
- 24VAC: 49 BTU/Hr.
- 28VAC: 50 BTU/Hr.
- System AC input VA requirement: 110VA.
Weights (approximate)
| Product Weight | 6.2 Lbs. (2.81 kg). |
|---|---|
| Shipping Weight | 6.8 Lbs. (3.08 kg). |
