Brand: Altronix | SKU: 283505

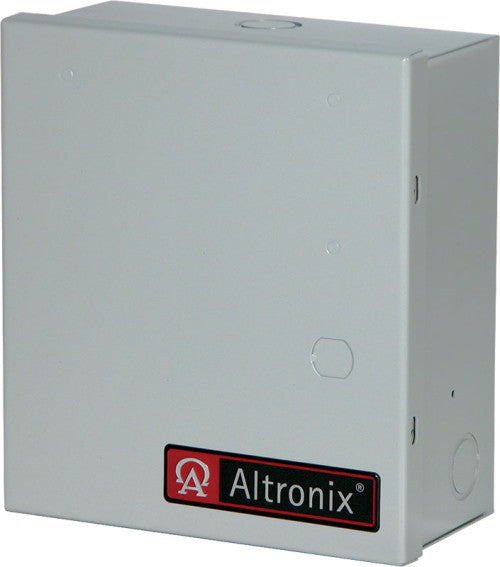

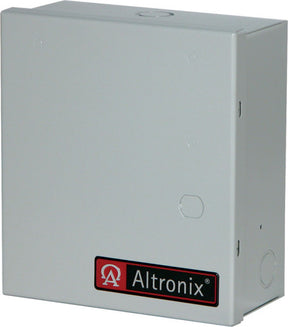

Altronix ALTV244ULCB | CCTV Power Supply, 4 PTC Class 2 Outputs, 24/28VAC @3.5A, BC100 Enclosure

$166.56

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

ALTV244ULCB AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via four (4) Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.

Main Features

Secondary fuse rated @ 5A/250V.
AC power LED.
Power ON/OFF switch.

Specifications

Enclosure

Wall mount enclosure for indoor use.
Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
1/2" and 3/4" combination knockouts.

Input

115VAC, 50/60Hz, 0.9A.

Output

Four (4) PTC protected auto-resettable outputs.
24VAC @ 3.5A (85VA) supply current (0.875A per device, 2.5A max.) or 28VAC @ 3A (85VA) supply current (0.75A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Surge suppression.

Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 43 BTU/Hr.
System AC input VA requirement: 103.5VA.

Weights (approximate)

Product Weight	6.4 Lbs. (2.9 kg).
Shipping Weight	7 Lbs. (3.2 kg).

Agency Listings

UL Listed For: Commercial CCTV Equipment (UL2044)	https://iq.ulprospector.com/en/profile?e=2863898
cUL Listed For: CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment	https://iq.ulprospector.com/en/profile?e=2863922
