Brand: Altronix | SKU: 231036

Altronix ALTV248 | CCTV Power Supply, 8 Fused Outputs, 24/28VAC @ 4A, 115VAC, BC100 Enclosure

$157.66

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

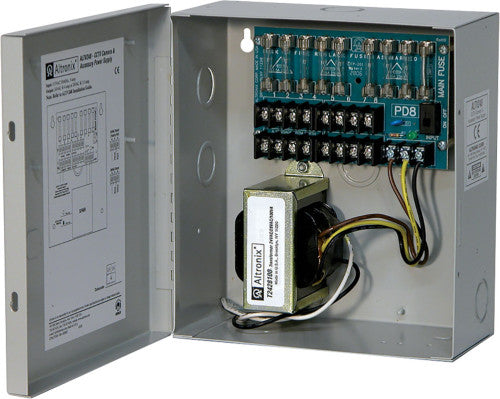

ALTV248 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Eight (8) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.

Main Features

Secondary fuse rated @ 5A/250V.
AC power LED.
Power ON/OFF switch.
Spare fuses provided. (all models w/primary and/or secondary fuses).

Specifications

Enclosure

Wall mount enclosure for indoor use.
Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
1/2" and 3/4" combination knockouts.

Input

115VAC, 50/60Hz, 0.9A.

Output

Eight (8) fuse protected outputs.
24VAC @ 4A (100VA) supply current (0.5A per device, 3.5A max.) or 28VAC @ 3.5A (100VA) supply current (0.438A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.

Electrical

Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%
BTU/Hr (approx.):
24VAC: 49 TU/Hr.
28VAC: 50 BTU/Hr.
System AC input VA requirement: 103.5VA.

Weights (approximate)

Product Weight	6.5 Lbs. (2.9 kg).
Shipping Weight	7 Lbs. (3.2 kg).
