Brand: Altronix | SKU: 306409

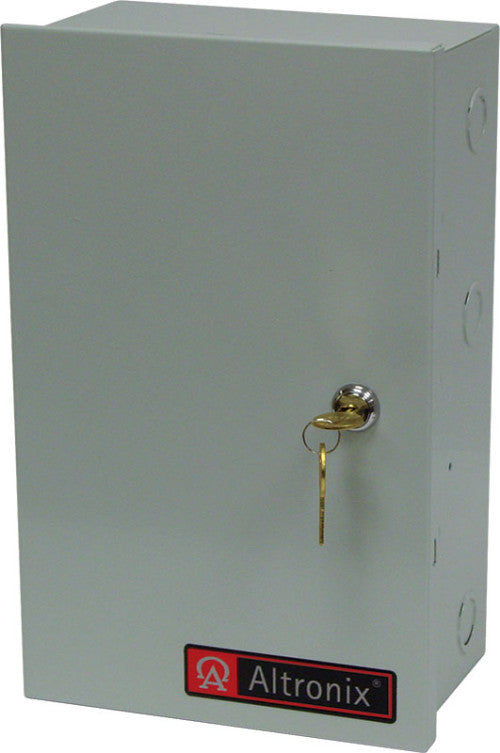

Altronix ALTV248175ULCB | CCTV Power Supply, 8 PTC Class 2 Outputs, 24/28VAC @ 7A, 115VAC, BC200 Enclosure

$283.54

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

ALTV248175ULCB provides 24VAC or 28VAC distributed via Eight (8) Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.

Main Features

Secondary fuse rated @ 10A/250V.
AC power LED.
Power ON/OFF switch.

Specifications

Enclosure

Wall mount enclosure for indoor use.
Dimensions 7.25"W x 12.25"H x 4.5"D (184 mm W x 311 mm H x 114 mm D).
1/2" and 3/4" combination knockouts.

Input

115VAC, 50/60Hz, 1.73A.

Output

Eight (8) Class 2 Rated PTC protected power limited outputs (auto-resettable).
24VAC @ 7A (170VA) supply current (0.875A per device, 2.5A max.) or 28VAC @ 6.25A (175VA) supply current (0.781A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Surge suppression.

Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%
BTU/Hr (approx.):
24VAC: 86 BTU/Hr.
28VAC: 90 BTU/Hr.
System AC input VA requirement: 198.95VA.

Weights (approximate)

Product Weight	8.5 Lbs. (3.855 kg).
Shipping Weight	9.5 Lbs. (4.309 kg).

Agency Listings

UL Listed For: Commercial CCTV Equipment (UL2044)	https://iq.ulprospector.com/en/profile?e=2863898
cUL Listed For: CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment	https://iq.ulprospector.com/en/profile?e=2863922

Documents and Downloads
