Brand: Altronix | SKU: 552986

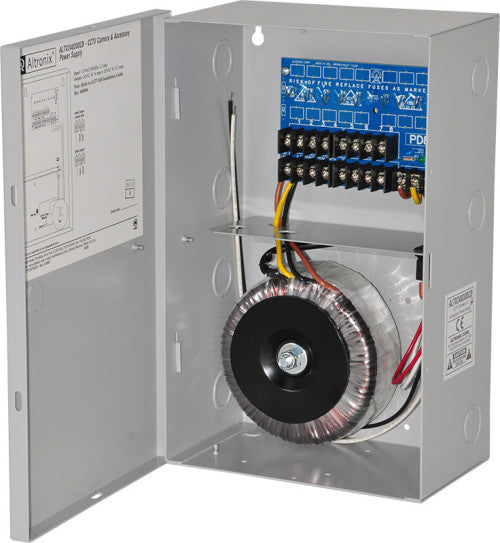

Altronix ALTV248300CB | CCTV Power Supply, 8 PTC Outputs, 24/28VAC @ 14A, 115VAC, BC200 Enclosure

Regular price $298.80
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

ALTV248300CB AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Eight (8) PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.

Main Features

  • Secondary fuse rated @ 15A/32V.
  • AC power LED.
  • Power ON/OFF switch.
  • Spare fuses provided. (all models w/primary and/or secondary fuses).

Specifications

Enclosure

  • Wall mount enclosure for indoor use.
  • Dimensions 7.25"W x 12.25"H x 4.5"D (184 mm W x 311 mm H x 114 mm D).
  • 1/2" and 3/4" combination knockouts.

Input

  • 115VAC, 50/60Hz, 2.7A.

Output

  • Eight (8) PTC protected outputs (auto-resettable).
  • 24VAC @ 14A (350VA) supply current (1.75A per device, 2.5A max.) or 28VAC @ 12.5A (350VA) supply current (1.563A per device, 2.5A max.).
  • Outputs are rated @ 2.5A.
  • Surge suppression.

Electrical

  • Temperature:
  • Operating: 0° C to 49° C (32° F to 120° F).
  • Storage: - 20° C to 70° C ( - 4° F to 158° F).
  • Relative Humidity 85% +/- 5%
  • BTU/Hr (approx.):
  • 24VAC: 154 BTU/Hr.
  • 28VAC: 143 BTU/Hr.
  • System AC input VA requirement: 310.5VA.

Weights (approximate)

Product Weight11.4 Lbs. (5.17 kg).
Shipping Weight12.4 Lbs. (5.624 kg).

Documents and Downloads
