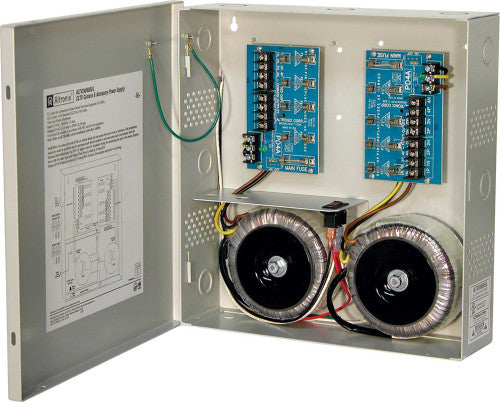

Altronix ALTV248600UL | CCTV Power Supply, 8 Fused Outputs, 24/28VAC @ 25A, 115VAC, BC300 Enclosure

$506.32 $556.95

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

ALTV248600UL provides 24VAC or 28VAC distributed via Eight (8) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.

Main Features

Secondary fuse rated @ 15A/32V.
AC power LED.
Power ON/OFF switch.
Spare fuses provided. (all models w/primary and/or secondary fuses).

Specifications

Enclosure

Wall mount enclosure for indoor use.
Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
1/2" and 3/4" combination knockouts.

Input

115VAC, 50/60Hz, 5.4A.

Output

Eight (8) fuse protected outputs.
24VAC @ 25A (600VA) supply current (3.125A per device, 3.5A max.) or 28VAC @ 20A (560VA) supply current (2.5A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Surge suppression.

Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%
BTU/Hr (approx.):
24VAC: 307 BTU/Hr.
28VAC: 287 BTU/Hr.
System AC input VA requirement: 621VA.

Weights (approximate)

Product Weight	22.2 Lbs. (10.069 kg).
Shipping Weight	23.2 Lbs. (10.523 kg).

Agency Listings

UL Listed For: Commercial CCTV Equipment (UL2044)	https://iq.ulprospector.com/en/profile?e=2863898
cUL Listed For: CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment	https://iq.ulprospector.com/en/profile?e=2863922

Documents and Downloads
