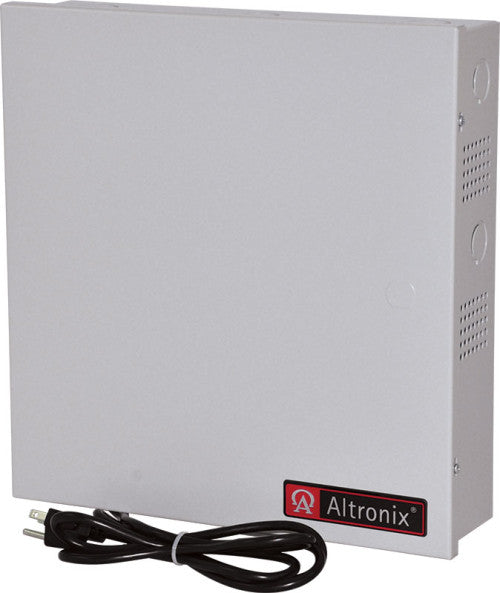

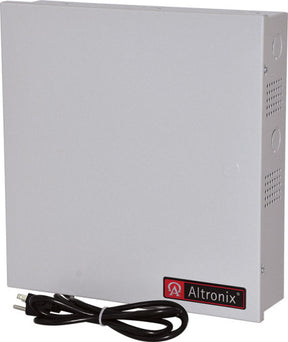

Altronix ALTV248600ULCB3 | CCTV Power Supply, 8 PTC Class 2 Outputs, 24/28VAC @ 25A, 115VAC, BC300 Enclosure, includes 3-wire line cord
ALTV248600ULCB3 provides 24VAC or 28VAC distributed via Eight (8) Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories. Factory installed 3-wire line cord.
ALTV248600ULCB3 provides 24VAC or 28VAC distributed via Eight (8) Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories. Factory installed 3-wire line cord.
Altronix - ALTV248600ULCB3 - Features and Specifications
- INPUT
- 115VAC, 50/60Hz, 5.4A.
- OUTPUT
- Eight (8) Class 2 Rated PTC protected power limited outputs (auto-resettable).
- 24VAC @ 25A (600VA) supply current (3.125A per device, 3.5A max.) or 28VAC @ 20A (560VA) supply current (2.5A per device, 3.5A max.).
- Outputs are rated @ 3.5A.
- Surge suppression.
Specifications
Specifications
Altronix - ALTV248600ULCB3 - Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Altronix - ALTV248600ULCB3 - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.):
- 24VAC: 307 BTU/Hr.
- 28VAC: 287 BTU/Hr.
- System AC input VA requirement: 621VA.
Altronix - ALTV248600ULCB3 - Specifications
| Sales Category | POWER SUPPLY |
|---|---|
| UNSPSC Code | 43211700 |
| Agency Listing | CE Compliant |
Altronix - ALTV248600ULCB3 - Weights (approximate)
| Product Weight: | 22.2 Lbs. (10.069 kg). |
|---|---|
| Shipping Weight | 23.2 Lbs. (10.523 kg). |
