Brand: Altronix | SKU: 312997

Altronix ALTV248CB | CCTV Power Supply, 8 PTC Outputs, 24/28VAC @ 4A, 115VAC, BC100 Enclosure

$157.66

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

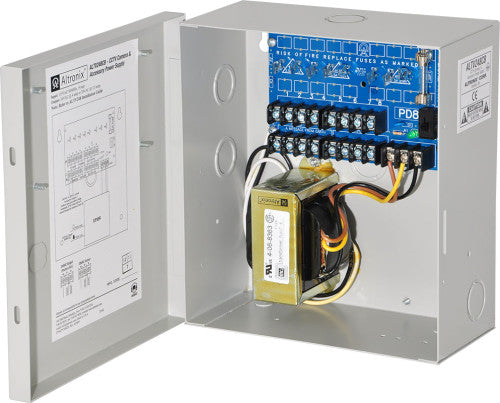

ALTV248CB AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Eight (8) PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.

Main Features

Secondary fuse rated @ 5A/250V.
AC power LED.
Power ON/OFF switch.

Specifications

Enclosure

Wall mount enclosure for indoor use.
Dimensions 7.5"W x 8.5"H x 3.5"D (191 mm W x 216 mm H x 89 mm D).
1/2" and 3/4" combination knockouts.

Input

115VAC, 50/60Hz, 0.9A.

Output

Eight (8) PTC protected outputs (auto-resettable).
24VAC @ 4A (100VA) supply current (0.5A per device, 2.5A max.) or 28VAC @ 3.5A (100VA) supply current (0.438A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Surge suppression.

Electrical

Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%
BTU/Hr (approx.):
24VAC: 49 BTU/Hr.
28VAC: 50 BTU/Hr.
System AC input VA requirement: 103.5VA.

Weights (approximate)

Product Weight	6.5 Lbs. (2.9 kg).
Shipping Weight	7 Lbs. (3.2 kg).
