Description

Altronix ALTV248MI220 | CCTV Power Supply, 8 Fused Outputs, 24VAC @ 12.5A, 220VAC, BC100M Enclosure

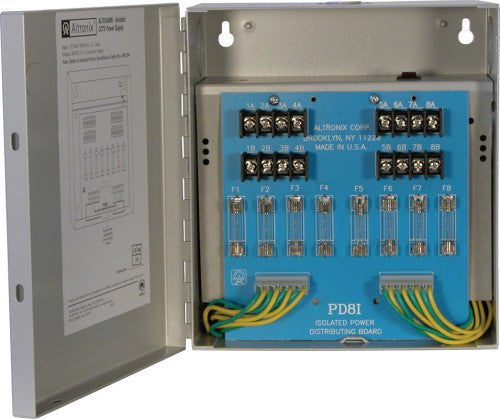

ALTV248MI220 Isolated CCTV Power Supply provides 24VAC distributed via eight (8) fuse protected isolated outputs for powering CCTV Cameras, heaters and other video accessories.

Altronix - ALTV248MI220 - Features and Specifications

INPUT
220VAC, 50/60Hz, 2.7A.
OUTPUT
Eight (8) fuse protected isolated outputs.
24VAC @ 12.5A (300VA) supply current.
Outputs are rated @ 3.5A.
Surge suppression.

Specifications

Altronix - ALTV248MI220 - Enclosure

Wall mount enclosure for indoor use.
Dimensions 7.5"W x 8.5"H x 3.875"D (190.5 mm W x 216 mm H x 98.5 mm D).
1/2" and 3/4" combination knockouts.

Altronix - ALTV248MI220 - Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 154 BTU/Hr.
System AC input VA requirement: 594VA.

Altronix - ALTV248MI220 - Specifications

Sales Category	POWER SUPPLY
UNSPSC Code	43211700
Agency Listing	CE Compliant

Altronix - ALTV248MI220 - Weights (approximate)

Product Weight:	12.25 Lbs. (5.5605 kg).
Shipping Weight	12.75 Lbs. (5.78 kg).
