Brand: Altronix | SKU: 10061992

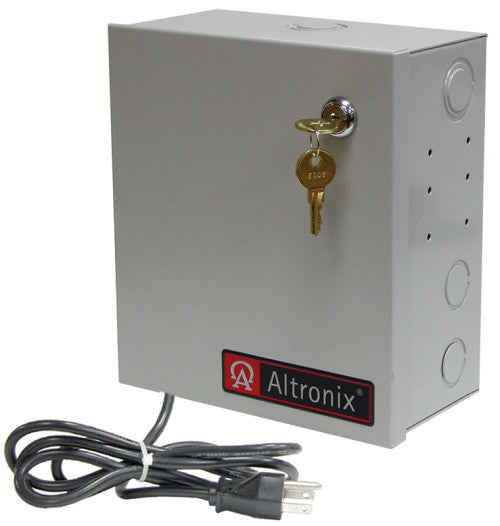

Altronix ALTV248ULCBMI3 | CCTV Power Supply, 8 Isolated PTC Class 2 Outputs, 24VAC @ 12.5A, 115VAC, BC100M Enclosure, includes 3-wire line cord

$390.34

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix ALTV248ULCBMI3 | CCTV Power Supply, 8 Isolated PTC Class 2 Outputs, 24VAC @ 12.5A, 115VAC, BC100M Enclosure, includes 3-wire line cord

ALTV284ULCBMI3 Isolated CCTV Power Supply provides 24VAC distributed via eight (8) isolated Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.

Altronix - ALTV248ULCBMI3 - Features and Specifications

INPUT
115VAC, 50/60Hz, 3A.
OUTPUT
Eight (8) Class 2 Rated PTC protected outputs.
24VAC @ 12.5A (300VA) supply current.
Outputs are rated @ 2.5A.
Surge suppression.

Specifications

Altronix - ALTV248ULCBMI3 - Enclosure

Wall mount enclosure for indoor use.
Dimensions 7.5"W x 8.5"H x 3.875"D (190.5 mm W x 216 mm H x 98.5 mm D).
1/2" and 3/4" combination knockouts.

Altronix - ALTV248ULCBMI3 - Temperature

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 154 BTU/Hr.
System AC input VA requirement: 345VA.

Altronix - ALTV248ULCBMI3 - Specifications

UNSPSC Code	24102001
Agency Listing	CE Compliant

Altronix - ALTV248ULCBMI3 - Weights (approximate)

Product Weight:	11.9 Lbs. (5.4 kg).
Shipping Weight	12.4 Lbs. (5.62 kg).

Documents and Downloads
