Altronix ALTV248ULHI | CCTV Power Supply, 8 Fused Outputs, 24VAC @ 12.5A, 115VAC, BC300 Enclosure
Regular price
$455.19
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix ALTV248ULHI | CCTV Power Supply, 8 Fused Outputs, 24VAC @ ...
Regular price
$455.19
Unit price
Description
Description

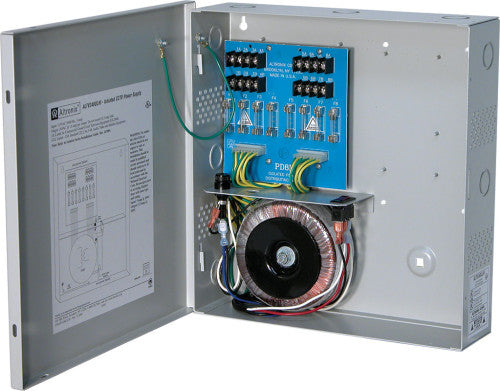

ALTV248ULHI Isolated CCTV Power Supply provides 24VAC distributed via eight (8) isolated fuse protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
Main Features
- Illuminated master power disconnect circuit breaker with manual reset.
- Unit maintains camera synchronization.
- Spare fuses provided.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- 115VAC, 50/60Hz, 3A.
Output
- Eight (8) fuse protected outputs.
- 24VAC @ 12.5A (300VA) supply current.
- Outputs are rated @ 3.5A.
- Surge suppression.
Electrical
- Temperature:
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 154 BTU/Hr.
- System AC input VA requirement: 345VA.
Weights (approximate)
| Product Weight | 12.7 Lbs. (5.76 kg). |
|---|---|
| Shipping Weight | 13.4 Lbs. (6.08 kg). |
Agency Listings
| UL Listed For: Commercial CCTV Equipment (UL2044) | https://iq.ulprospector.com/en/profile?e=2863898 |
|---|---|
| cUL Listed For: CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment | https://iq.ulprospector.com/en/profile?e=2863922 |
