Brand: Altronix | SKU: 552994

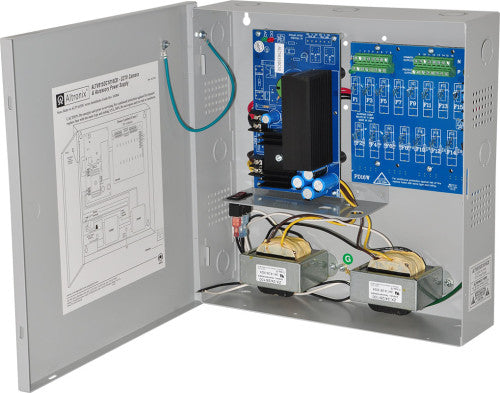

Altronix ALTV615DC1016CB | CCTV Power Supply, 16 PTC Outputs, 6-15VDC @ 10A, 115VAC, BC300 Enclosure

$391.61

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

ALTV615DC1016CB provides 6-15VDC distributed via sixteen (16) PTC protected outputs for powering CCTV Cameras, heaters and other video accessories.

Main Features

AC input and DC output LED indicators.
Illuminated power disconnect circuit breaker with manual reset.
Unit maintains camera synchronization.
Ease of installation saves time and eliminates costly labor.

Specifications

Enclosure

Wall mount enclosure for indoor use.
Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
1/2" and 3/4" combination knockouts.

Input

Input 115VAC, 50/60 Hz, 1.9A.

Output

Sixteen (16) PTC protected outputs (auto-resettable).
6VDC to 15VDC field adjustable.
10A total continuous supply current (0.625A per device, 3.5A max.).
Output fuses are rated @ 2.5A/250VAC.
Filtered and electronically regulated outputs.

Temperature

Operating 0 to 49° C (32 to 120° F )
Storage - 20 to 70° C ( - 4 to 158° F)
Relative Humidity 85% +/- 5%
BTU/Hr. (approx.): 31-77 BTU/Hr.
System AC input VA requirement: 218.5VA.

Weights (approximate)

Product Weight	14.9 Lbs. (6.76 kg).
Shipping Weight	16.2 Lbs. (7.35 kg).

Documents and Downloads
