Brand: Altronix
|
SKU:
10216330
Altronix ALTV615DC8CB220 | CCTV Power Supply, 8 PTC Class 2 Outputs, 6-15VDC @ 4A, 220VAC, BC300 Enclosure
Regular price
$225.05
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix ALTV615DC8CB220 | CCTV Power Supply, 8 PTC Class 2 Outputs...
Regular price
$225.05
Unit price
Description
Description

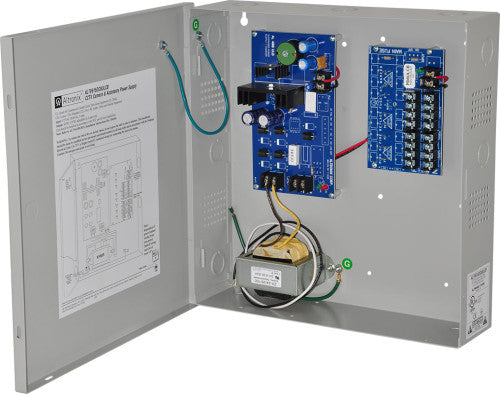

Altronix ALTV615DC8CB220 | CCTV Power Supply, 8 PTC Class 2 Outputs, 6-15VDC @ 4A, 220VAC, BC300 Enclosure
ALTV615DC8CB220 is designed with eight (8) individually PTC protected outputs for powering CCTV Cameras and other video accessories.
ALTV615DC8CB220 is designed with eight (8) individually PTC protected outputs for powering CCTV Cameras and other video accessories.
Altronix - ALTV615DC8CB220 - Features and Specifications
- INPUT
- Input 220VAC (working range 198VAC-256VAC), 50/60 Hz, 0.5A.
- OUTPUT
- Eight (8) PTC protected outputs (auto-resettable).
- 6VDC to 15VDC field adjustable.
- 4A total continuous supply current (0.50A per device, 2.5A max.).
- Outputs are rated @ 2.5A.
- Filtered and electronically regulated outputs.
- AC input and DC output LED indicators.
- Power ON/OFF switch.
- Unit maintains camera synchronization.
- Ease of installation saves time and eliminates costly labor.
Specifications
Specifications
Altronix - ALTV615DC8CB220 - Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Altronix - ALTV615DC8CB220 - Temperature
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70ºC ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 12-31 BTU/Hr., depending on output.
- System AC input VA requirement: 110VA.
Altronix - ALTV615DC8CB220 - Specifications
| Sales Category | POWER SUPPLY |
|---|---|
| UNSPSC Code | 43211700 |
Altronix - ALTV615DC8CB220 - Weights (approximate)
| Product Weight: | 11.5 Lbs. (5.22 kg). |
|---|---|
| Shipping Weight | 12 Lbs. (5.44 kg). |
