Brand: Altronix
|
SKU:
553000

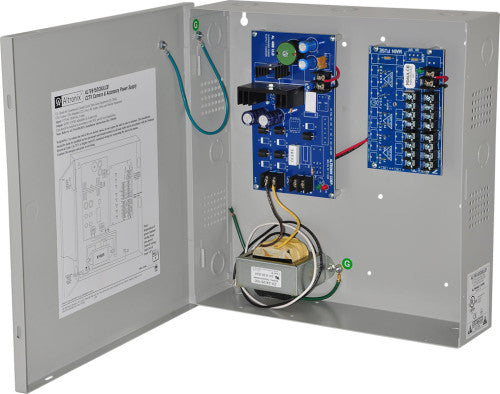

Altronix ALTV615DC8ULCB | CCTV Power Supply, 8 PTC Class 2 Outputs, 6-15VDC @ 4A, 115VAC, BC300 Enclosure
Regular price
$287.36
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix ALTV615DC8ULCB | CCTV Power Supply, 8 PTC Class 2 Outputs,...
Regular price
$287.36
Unit price
Description
Description
ALTV615DC8ULCB is designed with eight (8) individually Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras and other video accessories.
Main Features
- AC input and DC output LED indicators.
- Power ON/OFF switch.
- Unit maintains camera synchronization.
- Ease of installation saves time and eliminates costly labor.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- Input 115VAC, 50/60 Hz, 0.9A.
Output
- Eight (8) Class 2 Rated PTC protected power limited outputs (auto-resettable).
- 6VDC to 15VDC field adjustable.
- 4A total continuous supply current (0.50A per device, 2.5A max.).
- Outputs are rated @ 2.5A.
- Filtered and electronically regulated outputs.
Electrical
- Temperature:
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr.: 12-31 BTU/Hr., depending on output.
- System AC input VA requirement: 103.5VA.
Weights (approximate)
| Product Weight | 11.5 Lbs. (5.22 kg). |
|---|---|
| Shipping Weight | 12 Lbs. (5.44 kg). |
Agency Listings
| UL Listed For: Commercial CCTV Equipment (UL2044) | https://iq.ulprospector.com/en/profile?e=2863898 |
|---|---|
| cUL Listed For: CSA Standard C22.2 No.1-98, Audio, Video and Similar Equipment | https://iq.ulprospector.com/en/profile?e=2863922 |
Documents and Downloads
Documents and Downloads
- Altronix ALTV615DC8ULCB Data Sheet
- Altronix ALTV615DC8ULCB Data Sheet
- Altronix ALTV615DC8ULCB Fichas Tecnicas
- Altronix ALTV615DC8ULCB Installation Instructions
- Altronix ALTV615DC8ULCB Altronix_ALTV615DC8ULCB_CCTV_Power_Supply_Guia_de_Instalacion.pdf
- Altronix ALTV615DC8ULCB CAD Drawing
- Altronix ALTV615DC8ULCB Revit File
- Altronix ALTV615DC8ULCB Lifetime Warranty
