Brand: Altronix
|
SKU:
553035

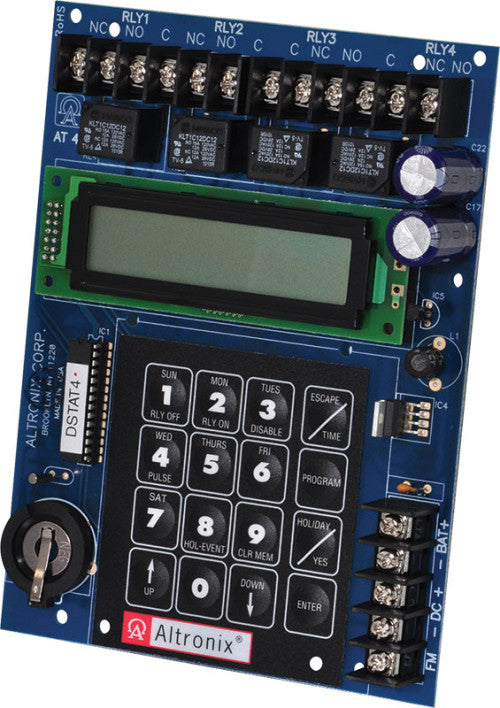

Altronix AT4B | Timer, 365 Day 24 Hour Annual Event, 4 Channel, Alphanumeric LCD Display, Battery Charger, Board
Regular price
$281.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix AT4B | Timer, 365 Day 24 Hour Annual Event, 4 Channel, Alp...
Regular price
$281.24
Unit price
Description
Description
Altronix AT4B is an extremely versatile 24 Hour 365 Day Event Timers designed to support a wide range of applications. Such applications include: Home and Building Automation, Security, Access Control, Lighting Control, Etc.
Main Features
- EE Prom memory protects against loss of programming due to power failure.
- Clock synchronization 60Hz (AC operation).
- Accurate crystal controlled clock (DC operation).
- First man in option.
- Standard or Daylight Savings Time settings.
- Automatic compensation for leap year.
Specifications
Specifications
Dimensions (approximate)
- 5.5"W x 1.2"L x 7"H (139.7 mm W x 30.48 mm L x 177.8 mm H).
Input
- 12 to 24 VAC or VDC operation.
Relay
- Standby current: 20mA with relays off combined with 40mA for each relay on.
- Four (4) Form "C" relay contacts are rated 10A @ 120VAC/28VDC.
- Each relay operates independently.
Events/Programming
- Momentary and/or Latching Events.
- 254 individually programmed daily/weekly events.
- Block programming capacity can accommodate a total of 1778 events per week.
- 254 programmable Holiday dates.
Battery Backup
- Built-in charger for 12VDC sealed lead acid or gel type batteries (Max. charge current 300mA).
- Lithium battery backup maintains clock.
- Order Altronix part # LB2032.
Weights (approximate)
| Product Weight | 0.3 Lbs. (0.13 kg). |
|---|---|
| Shipping Weight | 0.5 Lbs. (0.23 kg). |
