Brand: Altronix
|
SKU:
550735
Altronix DP4 | Power Distribution Module, 4 Fused Outputs up to 48 VAC/VDC, On/Off Switch, Includes ST3 and CLIP1 for DIN Rail Mounting
Regular price
$54.82
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix DP4 | Power Distribution Module, 4 Fused Outputs up to 48 ...
Regular price
$54.82
Unit price
Description
Description

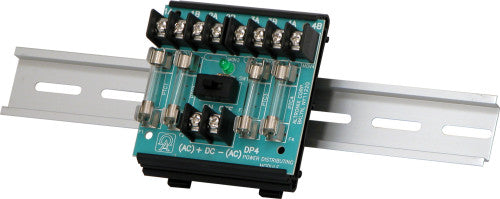

Altronix DP4 Power Distribution Module conveniently converts a single AC/DC input into four (4) individual fuse protected outputs.
Main Features
- AC power LED.
- Power ON/OFF switch.
- Includes Snap Track (Altronix model # ST3) and mounting clips for DIN Rail mounting capability.
Specifications
Specifications
Dimensions (approximate)
- 3.25"W x 3"L x 0.75"H (82.55 mm W x 76.2 mm L x 19.5 mm H).
Input
- Handles up to 48VAC/VDC.
Output
- Four (4) fuse protected outputs.
- Outputs are rated @ 3.5A.
- Surge suppression.
Temperature
- Operating 0ºC to 49ºC (32ºF to 120ºF).
- Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
Weights (approximate)
| Product Weight | 0.2 Lbs. (0.09 kg). |
|---|---|
| Shipping Weight | 0.3 Lbs. (0.136 kg). |
