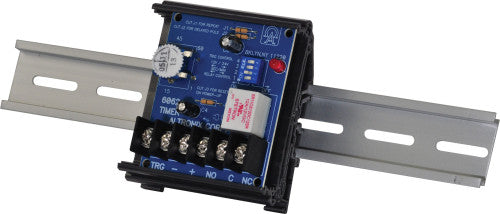

Altronix DTMR1 | Timer, Multi-Purpose, 12/24 VDC 1 Second to 60 Minutes, Includes ST3 for DIN Rail Mounting
Regular price
$53.52
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix DTMR1 | Timer, Multi-Purpose, 12/24 VDC 1 Second to 60 Min...
Regular price
$53.52
Unit price
Description
Description
Altronix DTMR1 programmable timer is suitable for many functions that require a timed operation e.g. Access Control Applications, Siren/Bell Cut Off Module, Dialer Delay, Guard Tour Supervisory Timer, etc. Some optional functions include: One Shot, Delayed Release, Delayed Operate, Delayed Pulse and Pulser/Flasher. A new feature has been added which provides a momentary relay activation at the end of a desired timing cycle. This feature eliminates the need for having to use two (2) timers to achieve this function. Another new feature will cancel (interrupt) timing cycle and reset timer if desired.
Main Features
- Quick and extremely accurate time range adjustment from 1 sec. to 60 min.
- Triggers via positive DC (+) voltage, dry contact closure, or removal of contact closure.
- Selectable relay activation at the start or end of the timing cycle.
- One (1) second momentary relay activation at the end of the timing cycle (eliminates the need to use two (2) timers for this function).
- Built-in reset feature which cancels timing cycle.
- Repeat (pulser/flasher) mode.
- Snap Track compatible (order Altronix model #ST3)
Specifications
Specifications
Dimensions (approximate)
- 2.5"W x 3"L x 0.75"H (63.5 mm W x 76.2 mm L x 20 mm H).
Input
- 12VDC or 24VDC operation is selectable.
Relay
- Form “C” relay contacts are 8A at 120VAC/28VDC.
- Current Draw: Stand-by 3mA; Relay Energized 40mA.
Visual Indicators
- LED indicates relay is energized.
Temperature
- Operating 0ºC to 49ºC ( 32ºF to 120ºF).
- Storage - 20ºC to 70ºC ( -4ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
Weights (approximate)
| Product Weight | 0.2 Lbs. (0.09 kg). |
|---|---|
| Shipping Weight | 0.25 Lbs. (0.11 kg). |
