Brand: Altronix | SKU: 552857

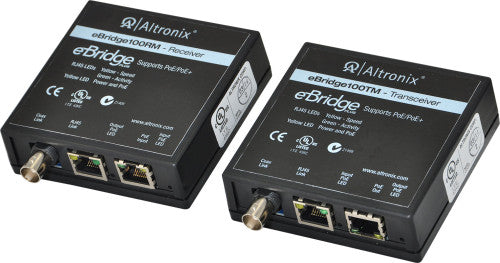

Altronix EBRIDGE100RMT | EoC or Long Range Ethernet Single Port Adapter Kit, 100Mbps, Passes PoE/PoE+, Includes Receiver & Transceiver

$441.21

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

eBridge100RMT Ethernet over Coax/CAT5e Adapter Kits transmit full duplex data at 100Mbps and pass PoE compliant power over coax 304m, or CAT5e cable up to 500m without repeaters. The adapter kit consists of an eBridge100RM receiver and an eBridge100TM transceiver. These adapters, along with the connected IP camera or edge device, is powered by virtually any midspan or endspan. Remote management functions such as edge device reset, monitoring real-time current draw and port status are possible when coupled with an Altronix NetWay8M/16M Midspan. eBridge100RMT is compatible with Megapixel, HD720, HD1080 and VGA cameras.

Specifications

Enclosure

Modular plastic case. VB6
Dimensions 3.5"W x 1"H x 3.5"D (88.89 mm W x 25.4 mm H x 88.89 mm D).

Input eBridge100RM

Powered by midspan or endspan.
PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).

Ethernet

Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5e cable.
Speed: 10/100BaseT, half/full duplex, auto negotiation.
PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).
The eBridge100RM receiver passes power over Coax/CAT5e cable to the eBridge100TM transceiver which in turn passes this power to an enabled IP Camera/edge device.
Throughput is rated to pass 100Mbps of data.

Coax

Distance: up to 304m.
Connectivity: BNC, RG-59/U or similar.

CAT5e or higher

Distance: up to 500m.

LED Indicators

eBridge100RM and eBridge100TM:
Yellow - PoE ON (by respective RJ45 jack).
eBridge100RM and eBridge100TM:
Yellow and Green LED (RJ45) IP Link status, 10/100Base-T/active.

Weights (approximate)

Product Weight	0.32 Lbs. (0.019 kg).
Shipping Weight	0.48 Lbs. (0.36 kg).

Agency Listings

UL Listed For: Information Technology Equipment (UL60950-1)	https://iq.ulprospector.com/en/profile?e=3010301
cUL Listed For: Information Technology Equipment	https://iq.ulprospector.com/en/profile?e=2998313
