Brand: Altronix | SKU: 715572

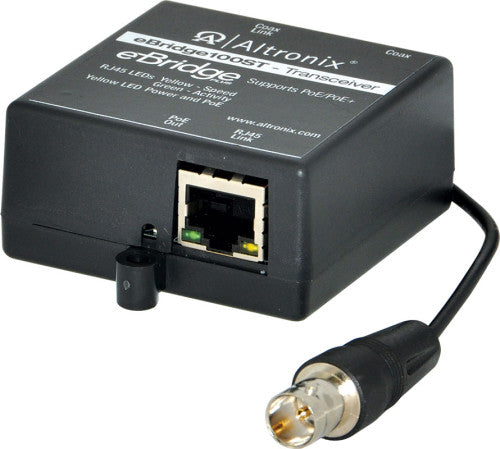

Altronix EBRIDGE100ST | EoC Single Port Small Transceiver, 100Mbps, Passes PoE/PoE+, Requires Compatible Receiver

$221.24

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix eBridge100ST EoC hardened transceiver transmits data at 100Mbps, Full Duplex over Coax cable to a paired eBridge receiver and provides power in a PoE/PoE+ compliant format to an enabled device/camera. The eBridge receiver is available in various options and is powered by an external midspan or endspan. The receiver passes PoE/PoE+ power over the same coax cable to the eBridge100ST transceiver, which, in turn, passes this power to an enabled IP camera/device. These plug and play units facilitate a cost-effective, simple way to replace legacy analog products with new IP devices over existing coax up to 300m.

Specifications

Enclosure

Modular plastic case.
Dimensions 2.27"W x 1.12"H x 2.64"D (57.66 mm W x 28.44 mm H x 67.18 mm D).

Compatible Receivers

eBridge100RM, eBridge400PCRM,
eBridge800PCRM, and eBridge1600PCRM.
eBridge800E
Visit www.altronix.com for the latest compatibility list.

Input

Operating power provided by eBridge receiver.
Current draw: 1.5W
PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) from eBridge receivers.*

Coax link

Throughput is rated to pass 100Mbps of data at distances up to 300m.for power delivery.
Connectivity: BNC, RG-59/U or similar.

Ethernet

Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5.
Distance: up to 100m.
Speed: 10/100BaseT, half/full duplex, auto negotiation.

LED Indicators

Green - PoE ON (by respective RJ45 jack).
Yellow and Green LED (RJ45) IP Link status, 10/100Base-T/active.
Blue: Coax Link is active.

Weights (approximate)

Product Weight	0.22 Lbs. (0.1 kg).
Shipping Weight	0.4 Lbs. (0.18 kg).

Agency Listings

UL Listed For: Information Technology Equipment (UL60950-1)	https://iq.ulprospector.com/en/profile?e=3010301
cUL Listed For: Information Technology Equipment	https://iq.ulprospector.com/en/profile?e=2998313

Documents and Downloads
