Brand: Altronix
|
SKU:
742731

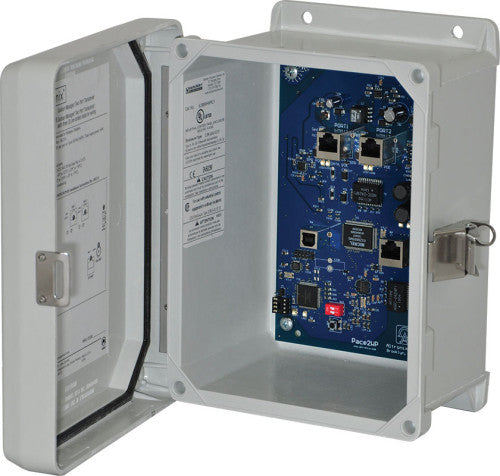

Altronix EBRIDGE200WPM | EoC or Long Range Ethernet 2 Port Transceiver, Outdoor, Passes PoE/PoE+/Hi-PoE 60W from Receiver, Requires Compatible Receiver
Regular price
$631.48
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix EBRIDGE200WPM | EoC or Long Range Ethernet 2 Port Transcei...
Regular price
$631.48
Unit price
Description
Description
eBridge200WPM PoE Ethernet transceiver/media converter transmits data and power over Coax or CAT5 cable over distances that are 3 to 5 times greater than standard Ethernet. Upgrading existing Coax analog camera infrastructure to IP cameras is greatly simplified as well. eBridge200WPM can support up to two PoE or PoE+ cameras/devices or a single Hi-PoE (60W) device. The eBridge200WPM/WPMH offers built-in IP management which allows for remote camera reset, monitoring and reporting via various IP protocols. There is no need to install remote AC mains power, since these devices are simply powered from the low voltage PoE midspan/endspan equipment, such as Altronix NetWay midspans or eBridge100SPR.
Specifications
Specifications
Enclosure
- NEMA 4/4X, IP66-11 Rated enclosure for outdoor use.
- Dimensions 7.32"W x 9.5"H x 4.92"D (185.9 mm W x 236.7 mm H x 125 mm D).
Input Options
- 30W: Midspan or Endspan; Pace1PRM, 4PRM, 8PRM or 16PRM; eBridge100RM, 400PCRM, 800PCRM or 1600PCRM.
- 60W: Pace1PRD, eBridge100SPR, or NetWay1D.
Power Output
- 2 ports PoE+ (30W) per port or 1 port Hi-PoE (60W).
- Total output power: 60W.
Ethernet
- Link Distance: 500m max. (with Pace or eBridge100 series PoE receivers to eBridge200WPM) or 100m (with standard midspan or endspan to eBridge200WPM).
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair CAT5 or better structured cable.
- Device Distance: 100m max. (eBridge200WPM to camera/device).
- Speed: 100BaseT, full duplex, auto negotiation.
Coax
- Link Distance: 300m max.
- Connectivity: BNC, RG-59/U or similar.
- Speed: 100BaseT, full duplex, auto negotiation.
LED Indicators
- Speed and Activity of Output ports.
- PoE ON the Spare Pair of CAT5
- PoE ON the Data Pair of CAT5.
Weights (approximate)
| Product Weight | 2.2 Lbs. (1 kg). |
|---|---|
| Shipping Weight | 3.2 Lbs. (1.45 kg). |
Agency Listings
| UL Listed For: Information Technology Equipment (UL60950-1) | https://iq.ulprospector.com/en/profile?e=3010301 |
|---|---|
| cUL Listed For: Information Technology Equipment (UL60950-22) | https://iq.ulprospector.com/en/profile?e=3010301 |
