Brand: Altronix
|
SKU:
742720

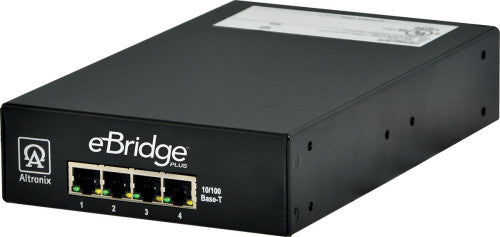

Altronix EBRIDGE400PCRM | EoC 4 Port Receiver, 100Mbps per port, Passes PoE/PoE+, Requires Compatible Transceiver
Regular price
$921.58
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix EBRIDGE400PCRM | EoC 4 Port Receiver, 100Mbps per port, Pa...
Regular price
$921.58
Unit price
Description
Description
Altronix eBridge400PCRM and eBridge100TM/eBridge100ST are CAT5e to Coax cable Ethernet adapters/Media converters that deliver data and power over the coax cable in a PoE+ compliant format. The paired set enables fast 100Base-T Full Duplex Ethernet digital communication to be transmitted over Coax cable. The eBridge400PCRM receivers are powered by any UL Listed, PoE midspan or endspans and pass power over the coax to the eBridge100TM/eBridge100ST hardened transceivers. This enables the eBridge400PCRM to be used in a managed manner, allowing for remote camera reset. The eBridge100TM/eBridge100ST, in turn, passes PoE+ compliant power to a PoE enabled camera or IP device. These plug and play units facilitate system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition, data transmission and power over the Coax is possible up to 300m in comparison to 100m Ethernet maximum distance (see Maximum Length of Coax Type vs. Camera Power/PoE Class, pg. 3).
Specifications
Specifications
Enclosure
- Modular plastic case.
- Dimensions 2.5"W x 1"H x 3.8"D (64 mm W x 25 mm H x 97 mm D).
Compatible Transceivers
- eBridge100TM: Hardened transceiver.
- eBridge100ST: Hardened mini transceiver.
Input
- Powered by a UL Listed limited power source, PoE midspan or endspan.
Ethernet
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair CAT5e or better structured cable.
- Distance: up to 100m.
- Speed: 100BaseT, 100Mbps full duplex, auto negotiation. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) Delivered to camera by eBridge100TM/eBridge100ST. Power provided by eBridge400PCRM to eBridge100TM/eBridge100ST by PoE protocol.
Coax
- Distance: up to 300m for power delivery of coax.
- Throughput is rated to pass 100Mbps of data at distances up to 300m full duplex. With proper headend equipment, this supports Megapixel, HD720, HD1080.
- Connectivity: BNC, RG-59/U or similar.
LED Indicators
- eBridge400PCRM:
- Blue LED (near BNC) - Coax link connection. Yellow and Green LED (RJ45) IP Link status, 100Base-T/active.
- eBridge100TM:
- Green - PoE ON (by respective RJ45 jack). Yellow and Green LED (RJ45) IP Link status, 100Base-T/active.
- eBridge100ST:
- Green - PoE ON (by respective RJ45 jack). Yellow and Green LED (RJ45) IP Link status, 10/100Base-T/active. Blue: Coax Link is active.
Weights (approximate)
| Product Weight | 1.35 Lbs. (0.61 kg). |
|---|---|
| Shipping Weight | 1.7 Lbs. (0.77 kg). |
Agency Listings
| UL Listed For: Information Technology Equipment (UL60950-1) | https://iq.ulprospector.com/en/profile?e=3010301 |
|---|---|
| cUL Listed For: Information Technology Equipment | https://iq.ulprospector.com/en/profile?e=2998313 |
