Brand: Altronix
|
SKU:
509575

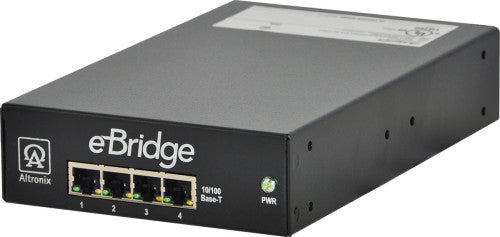

Altronix EBRIDGE4CR | EoC 4 Port Receiver, 25Mbps per port, Passes silmultaneous composite video, 24/56VDC or 24VAC, Requires Compatible Transceiver
Regular price
$844.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Description
Description
The eBridge4CR is a CAT5 to Coax cable Ethernet receiver. The receiver enables fast 10/100Base-T Ethernet digital communication to be received over Coax cable. This plug and play unit facilitates system upgrades from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated with installing new network cabling. In addition, data transmission over the Coax can be extended up to 610m (more than five times the 100m Ethernet maximum length), eliminating the need for repeaters. At the same time the unit can combine Composite Video Signal with the Ethernet data enabling connection to an analog input on a monitor or matrix switch. The eBridge4CR is to be used with a compatible Sony Hybrid cameras with "sloc" technology. An eBridge1CT is required for other IP cameras/devices.
Specifications
Specifications
Enclosure
- Dimensions 5.2"W x 1.7"H x 8.4"D (132 mm W x 43 mm H x 213 mm D).
-sloc™ Compliant
- Incorporates *sloc™ (Security Link over Coax) technology.
Input
- 24VDC to 56VDC UL Listed Class 2 power supply (polarity not observed) or UL Listed 24VAC Class 2 plug-in transformer.
Power Consumption
- 24VDC/440mA, 56VDC/220mA, 24VAC/800mA.
Ethernet
- Four (4) ports.
- Connectivity: RJ45, auto-crossover.
- Wire type: 4-pair Cat-5 or better structured cable.
- Distance: up to 100m.
- Speed: 10/100BaseT, half/full duplex, auto negotiation.
- Throughput is rated to pass 25Mbps of data at distances up to 500m with proper headend equipment which supports Megapixel, HD720, HD1080.
Coax
- Four (4) ports.
- Distance: up to 500m.
- Connectivity: BNC, RG-59/U or similar.
Weights (approximate)
| Product Weight | 2.9 Lbs. (1.32 kg). |
|---|---|
| Shipping Weight | 3.9 Lbs. (1.77 kg). |
Agency Listings
| UL Listed For: Information Technology Equipment (UL60950-1) | https://iq.ulprospector.com/en/profile?e=3010301 |
|---|---|
| cUL Listed For: Information Technology Equipment | https://iq.ulprospector.com/en/profile?e=2998313 |
