Description
Description

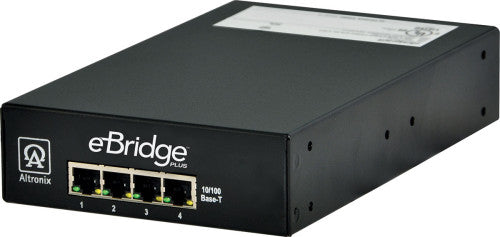

Altronix eBridge4PCRM is an four (4) port table top EoC Receiver that transmits data and power over coax cable in a PoE compliant format. It is powered by a UL Listed limited power source such as a midspan or endspan. Unit passes PoE or PoE+ up the coax to an eBridge1PCT/eBridge1PCTX transceiver. The transceiver in turn delivers that PoE compliant power to an edge device/camera. This plug and play unit facilitates system upgrades from analog to IP utilizing existing legacy Coax and eliminates the costs and labor associated with installing new network cabling. Data transmission and power over the Coax is possible up to 500m in comparison to 100m Ethernet distance (CAT5e). A maximum range from head end to the edge device/camera is 610m taking into consideration that up to 100m of structured cable may be deployed from the receiver to the network switch and the transceiver to the edge device/camera.
Specifications
Specifications
Enclosure
- Dimensions 5.2"W x 1.7"H x 8.4"D (132 mm W x 43 mm H x 213 mm D).
Input
- Powered by a UL Listed limited power source, PoE midspan or endspan.
Ethernet
- Connectivity: four (4) RJ45, auto-crossover.
- Wire type: 4-pair CAT5 or better structured cable.
- Distance: up to 100m.
- Speed: 10/100BaseT, half/full duplex, auto negotiation. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by eBridge transceiver.
- Throughput is rated to pass 25Mbps of data at distances up to 500m with proper headend equipment which supports Megapixel, HD720, HD1080.
Coax
- Distance: up to 500m for power delivery of coax.
- Connectivity: four (4) BNC, RG-59/U or similar.
LED Indicators
- Blue LED - Coax link connection. Green - PoE ON. Green - Power ON. RJ45 LEDs: Yellow - IP Link status, Green - 10/100Base-T/active.
Environmental
- Operating Temperature: - 4° F to 120.2° F ( - 20° C to +49° C).
- Storage Temperature: - 22° to 158° F ( - 30° to +70° C) Storage.
- Relative humidity: 85%, +/- 5%, non-condensing.
Weights (approximate)
| Product Weight | 1.35 Lbs. (0.61 kg). |
|---|---|
| Shipping Weight | 1.7 Lbs. (0.77 kg). |
Agency Listings
| UL Listed For: Information Technology Equipment (UL60950-1) | https://iq.ulprospector.com/en/profile?e=3010301 |
|---|---|
| cUL Listed For: Information Technology Equipment | https://iq.ulprospector.com/en/profile?e=2998313 |
