Brand: Altronix
|
SKU:
720421

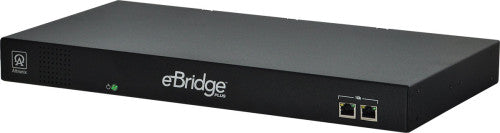

Altronix EBRIDGE8E | EoC 8 Port Receiver with Integrated 240W PoE/PoE+ Switch, 25Mbps per port, 1U, Requires Compatible Transceiver
Regular price
$1,807.78
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix EBRIDGE8E | EoC 8 Port Receiver with Integrated 240W PoE/P...
Regular price
$1,807.78
Unit price
Description
Description
The eBridge8E is an all-in-one head-end solution for upgrading coax to IP that combines a PoE+ switch and EoC Receiver into a single integrated unit for upgrading existing coax infrastructure and deploying the latest IP devices. This 8-Port Managed EoC Receiver with Integral PoE+ switch provides 30W full power per port (240W max). Features also include an integral battery charger for applications requiring backup and embedded LINQ Technology to monitor, control and report power and diagnostics from anywhere.
Specifications
Specifications
Enclosure
- Modular 1U standard EIA 19" rack mount chassis.
- Dimensions 19.12"W x 1.62"H x 2.5"D (486 mm W x 42 mm H x 64 mm D).
Input
- 115VAC 60Hz, 3.25A or 230VAC 50/60Hz, 2.0A.
Power Output
- 8-ports maximum power: 30W full power per port (PoE+) - 240W total power.
- Generates PoE/PoE+ up the coax to eBridge transceiver.
Ethernet over Coax
- Speed: 10/100BaseT, half/full duplex, auto negotiation.
- Each port rated at 25Mbps at distances up to 500m.
- Connectivity: BNC, RG-59/U or similar.
Ethernet Uplink Ports
- 1Gb uplink (100/1000 Mbps) (2x 1Gb pending).
LED Indicators
- Blue LED - Coax link connection.
- Yellow and Green LED (RJ45) IP Link status, 10/100Base-T/active.
- Green LED - Power.
Weights (approximate)
| Product Weight | 6 Lbs. (2.72 kg). |
|---|---|
| Shipping Weight | 8 Lbs. (3.63 kg). |
Agency Listings
| UL Listed For: Information Technology Equipment (UL60950-1) | https://iq.ulprospector.com/en/profile?e=3010301 |
|---|---|
| cUL Listed For: Information Technology Equipment | https://iq.ulprospector.com/en/profile?e=2998313 |
