Brand: Altronix
|
SKU:
1052580
Altronix EFLOW102N16DV | Power Supply Charger, 16 PTC Class 2 Outputs, 12VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 220VAC, BC300 Enclosure
Regular price
$439.93
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix EFLOW102N16DV | Power Supply Charger, 16 PTC Class 2 Outpu...
Regular price
$439.93
Unit price
Description
Description
Altronix EFLOW102N16DV | Power Supply Charger, 16 PTC Class 2 Outputs, 12VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 220VAC, BC300 Enclosure

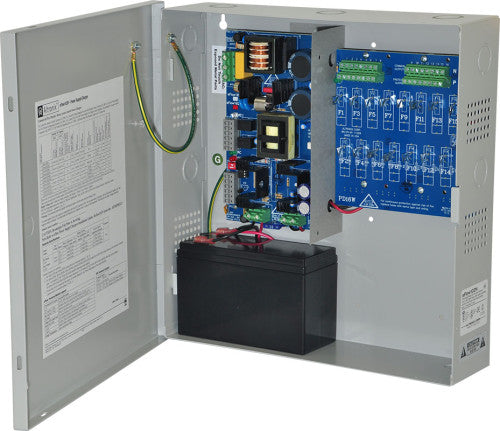

Altronix eFlow102N16DV is a power supply/charger that converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into sixteen (16) PTC protected 12VDC outputs with a total of 10A max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.
Altronix eFlow102N16DV is a power supply/charger that converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into sixteen (16) PTC protected 12VDC outputs with a total of 10A max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.
Altronix - EFLOW102N16DV - Features and Specifications
- INPUT
- 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.1A.
- Input fuse: 5A/250V.
- OUTPUT
- Sixteen (16) PTC protected outputs (auto-resettable).
- Outputs are rated @ 2A.
- 12VDC @ 10A supply current.
- Auxiliary output rated @ 1A (unswitched).
- Overvoltage protection.
- Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.
- Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
- Battery fail and presence supervision (form "C" contacts).
- Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% (depending on the power supply). Prevents deep battery discharge.
- Fire Alarm Disconnect
- Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.
Specifications
Specifications
Altronix - EFLOW102N16DV - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to one (1) 12VDC/7AH Batteries.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Altronix - EFLOW102N16DV - Visual Indicators
- Green AC Power LED indicates 220VAC present.
- AC input and DC output LED indicators.
Altronix - EFLOW102N16DV - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 61 BTU/Hr.
- System AC input VA requirement: 462VA.
Altronix - EFLOW102N16DV - Specifications
| Type | POWER SUPPLY |
|---|---|
| UNSPSC Code | 39121004 |
| Agency Listing | CE Compliant |
Altronix - EFLOW102N16DV - Weights (approximate)
| Product Weight: | 6.85 Lbs. (3.11 kg). |
|---|---|
| Shipping Weight | 7.75 Lbs. (3.52 kg). |
Altronix - EFLOW102N16DV - Accessories
| LINQ2 | Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers |
|---|
