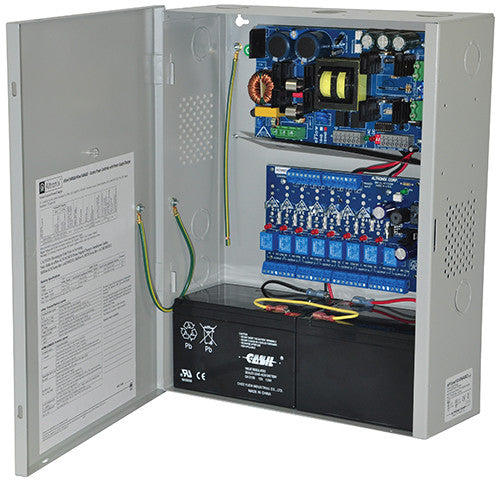

Altronix EFLOW102NA8DV | Access Power Controller with Power Supply/Charger, 8 PTC Class 2 Relay Outputs, 12VDC, 10A, Aux Output, FAI, 220VAC, BC400 Enclosure

Altronix - EFLOW102NA8DV - Features and Specifications

• INPUT
• Input 220VAC 50/60Hz, 2.1A.
• Power supply input options:
• a) One (1) common power input for ACM8CB and lock power (factory installed).
• b) Two (2) isolated power inputs - One (1) to power the ACM8CB and one (1) for lock accessory power (external power supply is required). Current is determined by the power supply connected, not to exceed a maximum of 10A total.
• Eight (8) Access Control System trigger inputs.
• Input options:
• a) Eight (8) normally open (NO) inputs.
• b) Eight (8) open collector inputs.
• c) Any combination of the above.
• ACM8CB board main fuse is rated at 10A.
• OUTPUT
• 12VDC output @ 10A supply current.
• Power-limited outputs.
• Eight (8) independently trigger controlled outputs.
• Output options:
• a) Eight (8) Fail-Safe filtered power outputs.
• b) Eight (8) Fail-Secure filtered power outputs.
• c) Any combination of the above.
• Eight (8) unswitched filtered aux. power outputs (outputs are rated @ 2A).
• Over Voltage protection.
• Short circuit and thermal overload protection.
• Fire Alarm Disconnect
• Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
• Supervision
• AC fail supervision (form "C" contacts).
• Battery fail & presence supervision (form "C" contacts).
• Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
• Battery Backup
• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.
• Zero voltage drop when unit switches over to battery backup (AC failure condition).
