Brand: Altronix
|
SKU:
552861

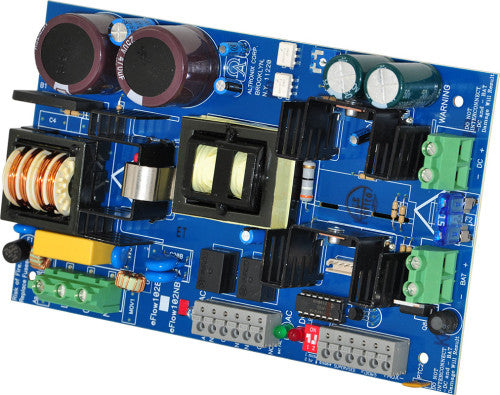

Altronix EFLOW102NB | Power Supply Charger, Single Output, 12VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
Regular price
$282.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix EFLOW102NB | Power Supply Charger, Single Output, 12VDC @ ...
Regular price
$282.31
Unit price
Description
Description
Altronix eFlow102NB UL Listed Sub-Assembly power supply/charger converts a 120VAC, 60Hz input into a single 12VDC output. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.
Specifications
Specifications
Dimensions (approximate)
- 4.6"W x 7.5"L x 1.75"H (116.84 mm W x 190.5 mm L x 44.45 mm H).
Input Rating
- Input 120VAC 60Hz, 3.5A.
Output
- 12VDC output.
- 10A continuous supply current.
- Aux. power-limited output rated @ 1A (unswitched).
- Over Voltage Protection.
- Filtered and electronically regulated outputs.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.
Fire Alarm Disconnect
- Supervised Fire Alarm disconnect (latching or nonlatching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
- Battery fail & presence supervision (form "C" contacts).
- Low power shutdown. Shuts down DC output terminals if battery voltage drops below 80% of nominal. Prevents deep battery discharge.
Weights (approximate)
| Product Weight | 0.85 Lbs. (0.39 kg). |
|---|---|
| Shipping Weight | 1 Lbs. (0.45 kg). |
Agency Listings
| UL Listed For: Power Supplies for use with Burglar Alarm Systems (UL603) | https://iq.ulprospector.com/en/profile?e=2087 |
|---|---|
| cUL Listed For: Power Supplies for Fire Protective Signaling Systems (UL1481) | https://iq.ulprospector.com/en/profile?e=153662 |
Documents and Downloads
Documents and Downloads
- Altronix EFLOW102NB Data Sheet
- Altronix EFLOW102NB Data Sheet
- Altronix EFLOW102NB Fichas Tecnicas
- Altronix EFLOW102NB Installation Instructions
- Altronix EFLOW102NB Altronix_EFLOW102NB_Power_Supply_Guia_de_Instalacion.pdf
- Altronix EFLOW102NB CAD Drawing
- Altronix EFLOW102NB Mounting Diagram
- Altronix EFLOW102NB Lifetime Warranty
