Brand: Altronix
|
SKU:
552864

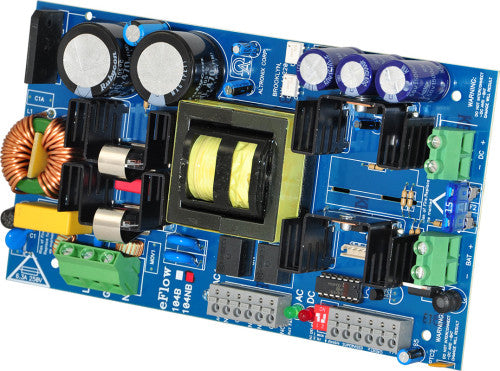

Altronix EFLOW104NB | Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board
Regular price
$339.48
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix EFLOW104NB | Power Supply Charger, Single Output, 24VDC @ ...
Regular price
$339.48
Unit price
Description
Description
Altronix eFlow104NB UL Listed Sub-Assembly power supply/charger converts a 120VAC, 60Hz input into a single 24VDC output. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.
Specifications
Specifications
Dimensions (approximate)
- 4.56"W x 8.25"L x 1.5"H (115.8 mm W x 209.5 mm L x 38.1 mm H).
Input Rating
- Input 120VAC 60Hz, 4.5A.
Output
- 24VDC output.
- 10A continuous supply current.
- Aux. power-limited output rated @ 1A (unswitched).
- Over Voltage Protection.
- Filtered and electronically regulated outputs.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.
Fire Alarm Disconnect
- Supervised Fire Alarm disconnect (latching or nonlatching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
- Battery fail & presence supervision (form "C" contacts).
- Low power shutdown. Shuts down DC output terminals if battery voltage drops below 80% of nominal. Prevents deep battery discharge.
Weights (approximate)
| Product Weight | 1.1 Lbs. (0.5 kg). |
|---|---|
| Shipping Weight | 1.25 Lbs. (0.57 kg). |
Agency Listings
| UL Listed For: Access Control System Units (UL294) | https://iq.ulprospector.com/en/profile?e=1606 |
|---|---|
| cUL Listed For: Power Supplies for use with Burglar Alarm Systems (UL603) | https://iq.ulprospector.com/en/profile?e=2087 |
Documents and Downloads
Documents and Downloads
- Altronix EFLOW104NB Data Sheet
- Altronix EFLOW104NB Data Sheet
- Altronix EFLOW104NB Fichas Tecnicas
- Altronix EFLOW104NB Installation Instructions
- Altronix EFLOW104NB Altronix_EFLOW104NB_Power_Supply_Guia_de_Instalacion.pdf
- Altronix EFLOW104NB CAD Drawing
- Altronix EFLOW104NB Mounting Diagram
- Altronix EFLOW104NB Lifetime Warranty
