Brand: Altronix
|
SKU:
10061942

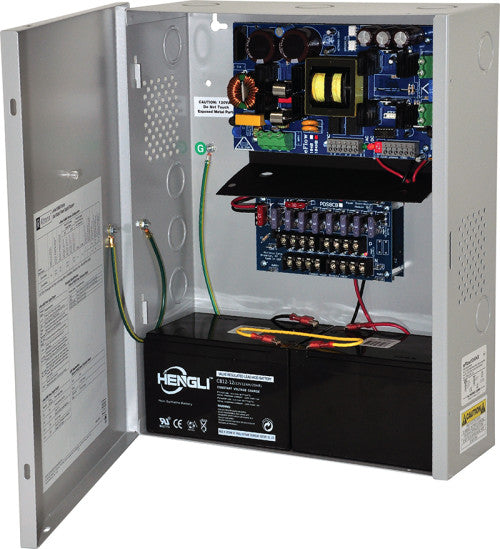

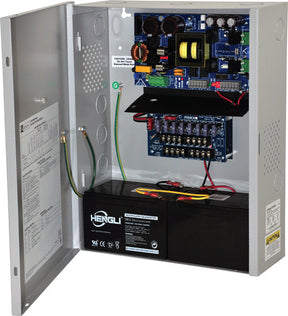

Altronix EFLOW104NK8 | Dual Output Power Supply/Charger, 8 fuse protected Auxiliary Class 2 power-limited outputs
Regular price
$563.76
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix EFLOW104NK8 | Dual Output Power Supply/Charger, 8 fuse pro...
Regular price
$563.76
Unit price
Description
Description
Altronix EFLOW104NK8 | Dual Output Power Supply/Charger, 8 fuse protected Auxiliary Class 2 power-limited outputs
Altronix eFlow104NK8 converts a 120VAC 60Hz input into eight (8) fuse protected 12VDC or 24VDC outputs with a total of 10A max. Unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. Dual input design allows power to be steered from two (2) factory installed independent low voltage 12 or 24VDC Altronix power supplies to eight (8) independently controlled fuse protected outputs.
Altronix eFlow104NK8 converts a 120VAC 60Hz input into eight (8) fuse protected 12VDC or 24VDC outputs with a total of 10A max. Unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. Dual input design allows power to be steered from two (2) factory installed independent low voltage 12 or 24VDC Altronix power supplies to eight (8) independently controlled fuse protected outputs.
Altronix - EFLOW104NK8 - Features and Specifications
- Power Supply/Chargers
- INPUT
- Voltage: 120VAC, 60Hz, 4.5A max.
- Input Fuse: 6.3A / 250V.
- OUTPUT
- Voltage: 24VDC @ 10A.
- Auxiliary: 1A (unswitched).
- Protection: Overvoltage protection. Filtered and regulated.
- Battery Backup (not included)
- Type: Sealed lead acid or gel type.
- Fuse Rating: 10A @ 32VDC.
- Failover: Upon AC loss, instantaneous.
- Fire Alarm Disconnect
- Supervised: Latching or non-latching.
- EOL: 10K Resistor.
- Indicators LED
- AC Input: 120VAC is present.
- DC Output: Powered.
- Battery: Discharged or not connected.
- VR6 Voltage Regulator
- INPUT
- Voltage: 24VDC from eFlow104NB.
- OUTPUT
- Voltage: 12VDC.
- Current: 6A continuous.
- Other: Surge suppression.
- Indicators LED
- Input: 24VDC is present.
- Output: Powered.
- PDS8 Dual Input Power Distribution Module
- INPUT
- Voltage: 24VDC from eFlow104NB and 12VDC or 5VDC from VR6.
- Input Fuse: 10A / 32V.
- OUTPUT
- Voltage: 12 or 24VDC individually selectable.
- Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2.
- Individual outputs may be set to OFF position for servicing.
- Output Fuses: 3A / 32VDC.
- Indicators (LED)
- Out1 - Out8: Bi-colored LEDs indicate 12 or 24VDC.
Specifications
Specifications
Altronix - EFLOW104NK8 - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/12AH Batteries.
- Dimensions 12"W x 15.5"H x 4.5"D (304.8 mm W x 393.7 mm H x 114.3 mm D).
- 1.125" and 1.375" combination knockouts.
Altronix - EFLOW104NK8 - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity: 85% +/- 5%.
- BTU/Hr (approx.): 123 BTU/Hr.
Altronix - EFLOW104NK8 - Specifications
| UNSPSC Code | 24102001 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - EFLOW104NK8 - Weights (approximate)
| Product Weight: | 9.4 Lbs. (4.26 kg). |
|---|---|
| Shipping Weight | 10.5 Lbs. (4.76 kg). |
Altronix - EFLOW104NK8 - Accessories
| LINQ2 | Network Communication Module, Control, Monitor and Report Power Supply Diagnostics, Compatible with eFlow Series and MaximalF Power Supply/Chargers |
|---|
