Brand: Altronix
|
SKU:
10183972

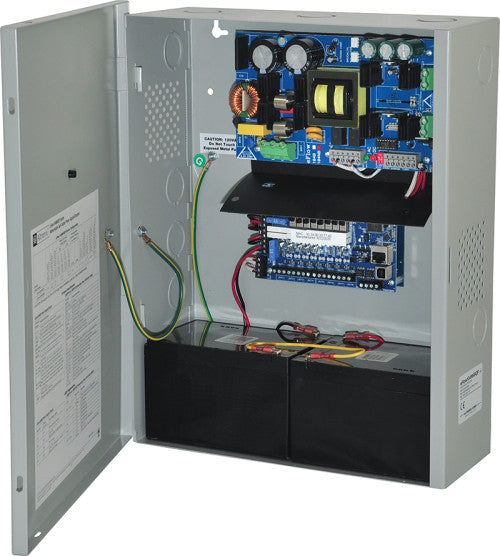

Altronix EFLOW104NK8DQP | Networkable Dual Output Power Supply/Charger, 8 PTC protected Auxiliary Class 2 power-limited outputs
Regular price
$862.81
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix EFLOW104NK8DQP | Networkable Dual Output Power Supply/Char...
Regular price
$862.81
Unit price
Description
Description
Altronix EFLOW104NK8DQP | Networkable Dual Output Power Supply/Charger, 8 PTC protected Auxiliary Class 2 power-limited outputs
Altronix eFlow104NK8DQP converts a 120VAC 60Hz input into eight (8) PTC protectedpower-limited outputs. Outputs are individually selectable, providing 12VDC or 5VDC up to6A and/or 24VDC up to 10A (240W total power) for access control panels, door locks, andancillary devices. Unit includes an unswitched aux. output. It also offers a suite of featuresthat includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. Networkable power distribution module facilitates monitoring, reporting, and control of the supervised DC power supply/charger overthe network. It reports diagnostics via Email and Windows Dashboard Alert notifications,greatly reducing system downtime and eliminating unnecessary service calls.
Altronix eFlow104NK8DQP converts a 120VAC 60Hz input into eight (8) PTC protectedpower-limited outputs. Outputs are individually selectable, providing 12VDC or 5VDC up to6A and/or 24VDC up to 10A (240W total power) for access control panels, door locks, andancillary devices. Unit includes an unswitched aux. output. It also offers a suite of featuresthat includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. Networkable power distribution module facilitates monitoring, reporting, and control of the supervised DC power supply/charger overthe network. It reports diagnostics via Email and Windows Dashboard Alert notifications,greatly reducing system downtime and eliminating unnecessary service calls.
Altronix - EFLOW104NK8DQP - Features and Specifications
- Power Supply/Chargers
- INPUT
- Voltage: 120VAC, 60Hz, 4.5A max.
- Input Fuse: 6.3A / 250V.
- OUTPUT
- Voltage: 24VDC @ 10A.
- Auxiliary: 1A (unswitched).
- Protection: Overvoltage protection. Filtered and regulated.
- Battery Backup (not included)
- Type: Sealed lead acid or gel type.
- Fuse Rating: 10A @ 32VDC.
- Failover: Upon AC loss, instantaneous.
- Fire Alarm Disconnect
- Supervised: Latching or non-latching.
- EOL: 10K Resistor.
- Indicators LED
- AC Input: 120VAC is present.
- DC Output: Powered.
- Battery: Discharged or not connected.
- VR6 Voltage Regulator
- INPUT
- Voltage: 24VDC from eFlow104NB.
- OUTPUT
- Voltage: 12VDC.
- Current: 6A continuous.
- Other: Surge suppression.
- Indicators LED
- Input: 24VDC is present.
- Output: Powered.
- LINQ8PDCB Network Power Distribution Module
- INPUT
- Voltage: 24VDC from eFlow104NB and 5VDC or 12VDC from VR6.
- Input Fuse: 15A / 32V.
- OUTPUT
- Eight (8) PTC protected outputs rated 2A.
- Power output(s) can be locally or remotely controlled.
- Surge suppresion.
- Output PTCs: 2A.
- Status Monitoring
- Power Supply output voltage and load.
- Voltage and load of each output.
- FACP trigger and reset status.
- Unit temperature (Celsius).
- Power Supply AC and Battery status.
- Battery health.
- Indicators (LED)
- Bat Local: Charging current status.
- FACP: Triggered / Released.
- Input: Input signal.
- Out1 - Out8: Bi-colored LEDs indicate 12 or 24VDC.
- Reporting
- Windows Dashboard Alert messages.
- E-mail notifications.
- Event Log tracks history.
- Programming Features
- Power Supply(ies) voltage and load limits (High/Low).
- FACP trigger type (wet or dry-N.O./N.C.).
- Input Function (FACP reset/tamper).
- Output Reset Trigger (N.O./N.C.).
- Battery Monitor Configuration:
- Battery condition (Low/Normal/Missing)
- Service Date
- Configurable Output Relay(s).
- Individual Output Configuration:
- Device ID
- Voltage and Current Limits (High/Low)
- FACP Trigger Setting (latching/non-latching/inactive)
- Battery Backup.
- Fire Alarm Interface
- Supervised FACP disconnect (Latching or Non-Latching).
- FACP reset (N.C. or N.O.).
Specifications
Specifications
Altronix - EFLOW104NK8DQP - Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/12AH Batteries.
- Dimensions 12"W x 15.5"H x 4.5"D (304.8 mm W x 393.7 mm H x 114.3 mm D).
- 1.125" and 1.375" combination knockouts.
Altronix - EFLOW104NK8DQP - Temperature
- Operating: 0° C to 49° C (32° F to 120° F).
- Storage: - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity
- Relative Humidity 85% +/- 5%.
- BTU/Hr (approx.): 123 BTU/Hr.
Altronix - EFLOW104NK8DQP - Specifications
| UNSPSC Code | 24102001 |
|---|---|
| Agency Listing | CE Compliant |
Altronix - EFLOW104NK8DQP - Weights (approximate)
| Product Weight: | 9.4 Lbs. (4.26 kg). |
|---|---|
| Shipping Weight | 10.5 Lbs. (4.76 kg). |
