Brand: Altronix
|
SKU:
909917

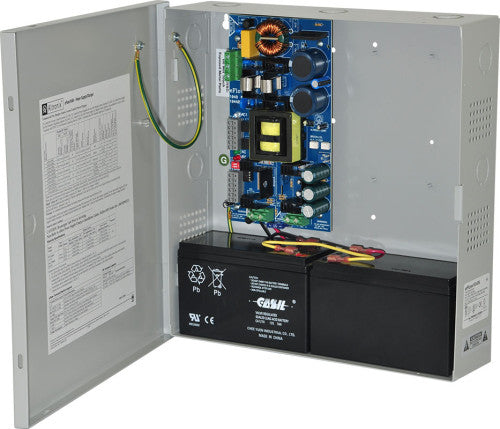

Altronix EFLOW104NV | Power Supply Charger, Single Output, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 220VAC, BC300 Enclosure
Regular price
$429.76
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix EFLOW104NV | Power Supply Charger, Single Output, 24VDC @ ...
Regular price
$429.76
Unit price
Description
Description
Altronix eFlow104NV is a power supply/charger that converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into a single 24VDC output with a total of 10A max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.
Specifications
Specifications
Enclosure
- Wall mount enclosure for indoor use.
- Accommodates up to two (2) 12VDC/7AH Batteries.
- Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
- 1/2" and 3/4" combination knockouts.
Input
- 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.7A.
- Input fuse: 5A/250V.
Output
- 24VDC @ 10A supply current.
- Auxiliary output rated @ 1A (unswitched).
- Overvoltage protection.
Battery Backup
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.
Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
- Battery fail and presence supervision (form "C" contacts).
- Low power shutdown. Shuts down DC output terminals if battery voltage drops below 70-75% (depending on the power supply). Prevents deep battery discharge.
Fire Alarm Disconnect
- Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.
Weights (approximate)
| Product Weight | 6.8 Lbs. (3.08 kg). |
|---|---|
| Shipping Weight | 7.7 Lbs. (3.49 kg). |
