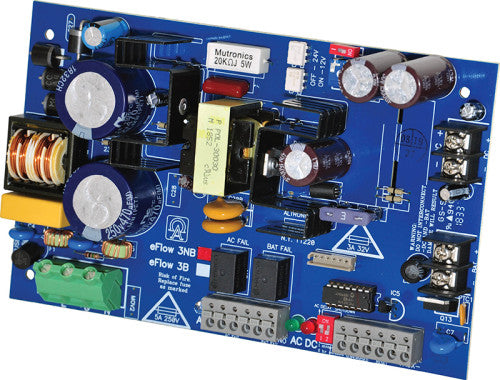

Altronix EFLOW3NB | Power Supply Charger, Single Output, 12/24VDC @ 2A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board

Dimensions (approximate)

• 4.6"W x 7.5"L x 1.75"H (116.84 mm W x 190.5 mm L x 44.45 mm H).

Input Rating

• Input 120VAC 60Hz, 3.5A.

Output

• Class 2 Rated power-limited output.
• 12VDC or 24VDC selectable output.
• 2A continuous supply current.
• Aux. Class 2 Rated power-limited output rated @ 1A (unswitched).
• Overvoltage protection.
• Filtered and electronically regulated outputs.

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries.
• Maximum charge current 1.54A.
• Automatic switch over to stand-by battery when AC fails.
• Transfer to stand-by battery power is instantaneous with no interruption.

Fire Alarm Disconnect

• Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.

Supervision

• AC fail supervision (form "C" contacts).
• Battery fail and presence supervision (form “C” contacts).
• Low power shutdown. Shuts down DC output terminals if battery voltage drops below 80% of nominal. Prevents deep battery discharge.

Weights (approximate)
