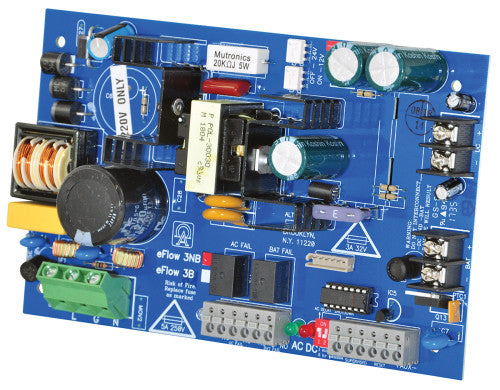

Altronix EFLOW3NBV | Power Supply Charger, Single Output, 12/24VDC @ 2A, Aux Output, FAI, LinQ2 Ready, 220VAC, Board

Altronix EFLOW3NBV | Power Supply Charger, Single Output, 12/24VDC @ 2A, Aux Output, FAI, LinQ2 Ready, 220VAC, Board

Input Rating

Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.1A.

Output

12VDC or 24VDC selectable output.
2A continuous supply current.
Filtered and electronically regulated output.
Aux. output rated @ 1A (unswitched).
Overvoltage protection.

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.

Supervision

AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
Battery fail and presence supervision (form "C" contacts).
Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.

Fire Alarm Disconnect

Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.

Electrical / Temperature:

Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.

BTU/Hr (approx.):

12VDC: 12 BTU/Hr.
24VDC: 25 BTU/Hr.
System AC input VA requirement: 462VA.

Visual Indicators

Green AC Power LED indicates 120VAC present.
AC input and DC output LED indicators.

Additional Features

Short circuit and overload protection.
