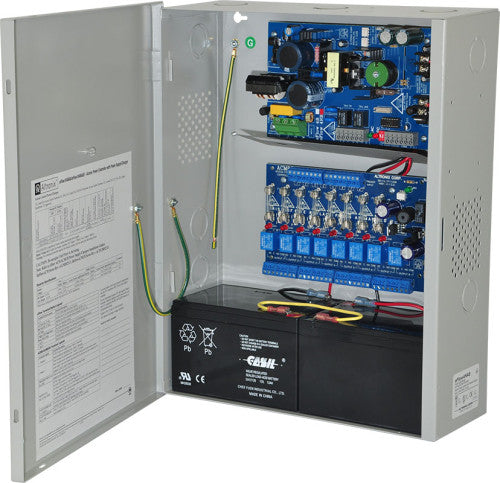

Altronix EFLOW4NA8 | Access Power Controller w/ Power Supply/Charger, 8 Fused Class 2 Relay Outputs, 12/24VDC, 4A, Aux Output, FAI, 115VAC, BC400 Enclosure

Enclosure

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/12AH Batteries.
• Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
• 1.125" and 1.375" combination knockouts.

Input

• Input 120VAC 60Hz, 3.5A
• Power supply input options:
• a) One (1) common power input for ACM8 and lock power (factory installed).
• b) Two (2) isolated power inputs - One (1) to power the ACM8 and one (1) for lock accessory power, (external power supply is required). Current is determined by the power supply connected, not to exceed a maximum of 10A total.
• Eight (8) Access Control System trigger inputs
• Input options:
• a) Eight (8) normally open (NO) inputs.
• b) Eight (8) open collector inputs.
• c) Any combination of the above.
• ACM8 board main fuse is rated at 10A.

Output

• 12VDC or 24VDC outputs @ 4A supply current.
• Power-limited outputs.
• Eight (8) independently trigger controlled outputs
• Output options:
• a) Eight (8) Fail-Safe filtered power outputs.
• b) Eight (8) Fail-Secure filtered power outputs.
• c) Eight (8) form "C" relay outputs (rated @ 5A /24VDC or VAC).
• d) Any combination of the above.
• Eight (8) unswitched filtered aux. power outputs (outputs are rated @ 2.5A).
• Over Voltage protection.
• Short circuit and thermal overload protection.

Fire Alarm Disconnect

• Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs
• Fire Alarm disconnect input options:
• a) Normally open (NO) or normally closed (NC) dry contact input.
• b) Polarity reversal input from FACP signaling circuit.
• Alarm output relay indicates that FACP input is triggered (form "C" contact rated @ 1A 28VDC not evaluated by UL).

Supervision

• AC fail supervision (form "C" contacts).
• Battery fail & presence supervision (form "C" contacts).
• Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.

Visual Indicators

• ACM8 Access Power Controller:
• Red LEDs indicate outputs are triggered (relays energized).
• Green LED indicates FACP disconnect is triggered.
• eFlow Power Supply Board:
• AC input and DC output LED indicators.

Weights (approximate)
