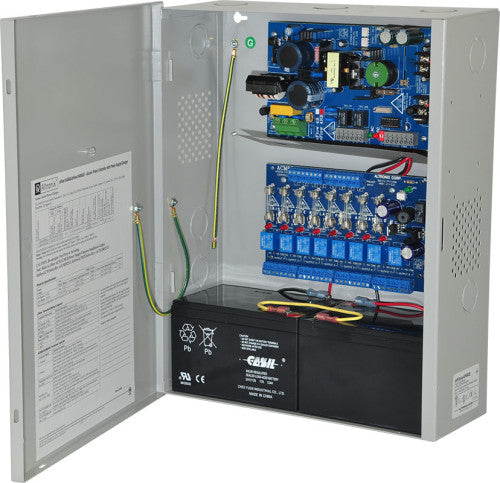

Altronix EFLOW4NA8V | Access Power Controller with Power Supply/Charger, 8 Fused Relay Outputs, 12/24VDC, 4A, Aux Output, FAI, 220VAC, BC400 Enclosure

Altronix - EFLOW4NA8V - Features and Specifications

• INPUT
• Input 220VAC 50/60Hz, 2.1A.
• Power supply input options:
• a) One (1) common power input for ACM8 and lock power (factory installed).
• b) Two (2) isolated power inputs - One (1) to power the ACM8 and one (1) for lock accessory power, (external power supply is required). Current is determined by the power supply connected, not to exceed a maximum of 10A total.
• Eight (8) Access Control System trigger inputs.
• Input options:
• a) Eight (8) normally open (NO) inputs.
• b) Eight (8) open collector inputs.
• c) Any combination of the above.
• ACM8 board main fuse is rated at 10A.
• OUTPUT
• 12VDC or 24VDC outputs @ 4A supply current.
• Power-limited outputs.
• Eight (8) independently trigger controlled outputs.
• Output options:
• a) Eight (8) Fail-Safe filtered power outputs.
• b) Eight (8) Fail-Secure filtered power outputs.
• c) Eight (8) form "C" relay outputs (rated @ 5A /24VDC or VAC).
• d) Any combination of the above.
• Eight (8) unswitched filtered aux. power outputs (outputs are rated @ 2.5A).
• Over Voltage protection.
• Short circuit and thermal overload protection.
• Fire Alarm Disconnect
• Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
• Supervision
• AC fail supervision (form "C" contacts).
• Battery fail & presence supervision (form "C" contacts).
• Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.
