Brand: Altronix | SKU: 552868

Altronix EFLOW4NB | Power Supply Charger, Single Output, 12/24VDC @ 4A, Aux Output, FAI, LinQ2 Ready, 115VAC, Board

$247.93

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

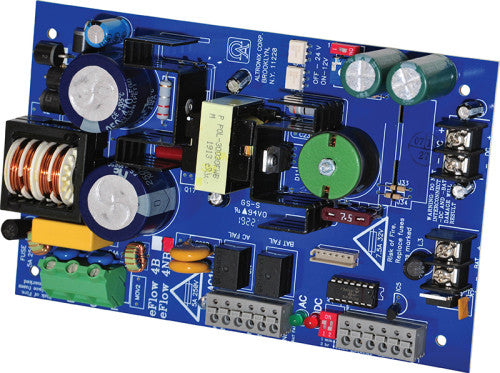

Altronix eFlow4NB UL Listed Sub-Assembly power supply/charger converts 120VAC, 60Hz input into a single 12VDC or 24VDC Class 2 Rated power-limited output. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.

Specifications

Dimensions (approximate)

4.6"W x 7.5"L x 1.75"H (116.84 mm W x 190.5 mm L x 44.45 mm H).

Input Rating

Input 120VAC 60Hz, 3.5A.

Output

Class 2 Rated power-limited output.
12VDC or 24VDC selectable output.
4A continuous supply current.
Aux. Class 2 Rated power-limited output rated @ 1A (unswitched).
Overvoltage protection.
Filtered and electronically regulated outputs.

Battery Backup

Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.

Fire Alarm Disconnect

Supervised Fire Alarm disconnect (latching or nonlatching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.

Supervision

AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
Battery fail & presence supervision (form "C" contacts).
Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.

Weights (approximate)

Product Weight	0.85 Lbs. (0.39 kg).
Shipping Weight	1 Lbs. (0.45 kg).

Agency Listings

UL Listed For: Access Control System Units (UL294)	https://iq.ulprospector.com/en/profile?e=1606
cUL Listed For: Power Supplies for use with Burglar Alarm Systems (UL603)	https://iq.ulprospector.com/en/profile?e=2087

Documents and Downloads
