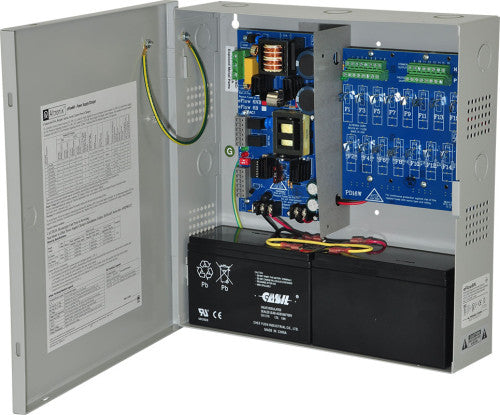

Altronix EFLOW6N16D | Power Supply Charger, 16 PTC Class 2 Outputs, 12/24VDC @ 6A, Aux Output, FAI, LinQ2 Ready, 115VAC, BC300 Enclosure

Enclosure

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/7AH Batteries.
• Dimensions 13"W x 13.5"H x 3.25"D (330 mm W x 343 mm H x 83 mm D).
• 1/2" and 3/4" combination knockouts.

Input

• 120VAC, 60Hz, 3.5A.
• Input fuse: 5A/250V.

Output

• Sixteen (16) Class 2 power-limited PTC protected outputs (auto-resettable).
• 12VDC or 24VDC @ 6.0A supply current.
• Outputs are rated at 2A.
• Auxiliary Class 2 Power-Limited output rated @ 1A (unswitched).
• Overvoltage Protection.

Battery Backup

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption.

Supervision

• AC fail supervision (form "C" contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
• Battery fail & presence supervision (form "C" contacts).
• Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.

Fire Alarm Disconnect

• Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.

Weights (approximate)

Agency Listings
