Brand: Altronix
|
SKU:
742775

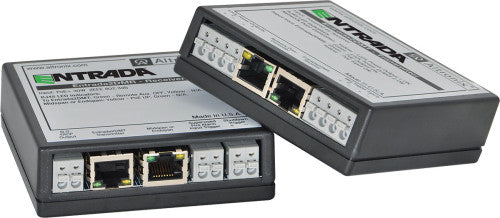

Altronix ENTRADA2DMK | IP Access Control FACP Adapter Kit, Provides FAI for 2 Locks while maintaining PoE to Access Control Panel, Includes Receiver and Transmitter
Sale price
$329.57
Regular price
$362.53
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix ENTRADA2DMK | IP Access Control FACP Adapter Kit, Provides...
Sale price
$329.57
Regular price
$362.53
Unit price
Brand: Altronix
|
SKU:
742775
Sale price
$329.57
Regular price
$362.53
Unit price
Shipping calculated at checkout.
Description
Description
These adapters are specifically designed to interface with Network Door Controllers. They route power (PoE/PoE+) from a PoE switch or Midspan to the Network Door Controller and accommodate up to two (2) Fail-Secure strikes or Fail-Safe mag locks. The receiver features a supervised Fire Alarm Disconnect which releases locking devices while maintaining power to the Network Door Controller. The Fire Alarm Interface feature allows multiple units to be interconnected enabling any or all to be affected from a single FACP trigger input.
Specifications
Specifications
Enclosure
- Modular plastic case. VB6
- Dimensions 3.5"W x 1"H x 3.5"D (88.89 mm W x 25.4 mm H x 88.89 mm D).
Input Power
- For UL 60950-1 use a UL Listed Endspan/Midspan LPS limited power source.
- For UL 294 use a UL Listed PoE/PoE+ (IEEE 802.3af/at) Midspan/Endspan.
Power Output
- Both lock outputs are selectable for either 12VDC or 24VDC and rated @ 8W (12V/667mA, 24V/333mA) each maximum (16W combined). Total power rated @ 30W (PoE and lock power).
Trigger Input
- 12VDC-24VDC shutdown trigger (Receiver).
- Two (2) independent 12VDC-24VDC access control trigger inputs (Transmitter).
Fire Alarm Disconnect
- Supervised Fire Alarm Disconnect is selectable for Normally Open (N.O.) or Normally Closed (N.C.) trigger input.
Ethernet
- Connectivity: RJ45.
- Wire type: 4-pair CAT-5 or higher structured cable.
- Distance: 100m max.
- Speed: 10/100BaseT.
Weights (approximate)
| Product Weight | 0.45 Lbs. (0.2 kg). |
|---|---|
| Shipping Weight | 0.8 Lbs. (0.36 kg). |
Agency Listings
| UL Listed For: Access Control System Units (UL294) | https://iq.ulprospector.com/en/profile?e=1521 |
|---|---|
| cUL Listed For: Power Over Ethernet (PoE) for Access Control (UL294) | https://iq.ulprospector.com/en/profile?e=1521 |
