Brand: Altronix | SKU: 552875

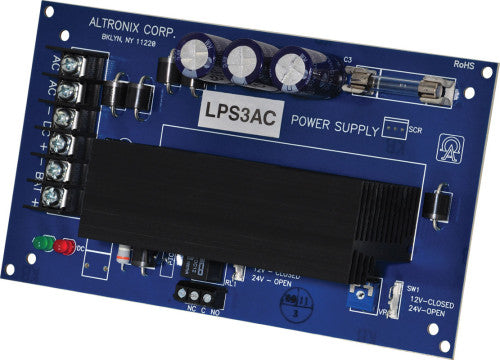

Altronix LPS3AC | Linear Power Supply/Charger, Single Class 2 Output, AC Fail Supervision, 12/24VDC @ 2.5A, 16/28VAC, Board

$97.90

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Altronix LPS3AC linear power supply/charger converts a low voltage AC input into a 12VDC or 24VDC output. The unit is specifically designed to provide the power needed by the most demanding security and access control applications.

Specifications

Dimensions (approximate)

4"W x 7"L x 2"H (101.6 mm W x 177.8 mm L x 50.8 mm H).

Input

16VAC or 28VAC.

Output

12VDC/24VDC selectable output.
2.5A continuous supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.

Battery

Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery.
Fused battery protection (circuit breaker available).

Supervision

Provides AC Fail supervision (Form "C" contacts)..

Visual Indicators

AC/DC power LED indicator.

Weights (approximate)

Product Weight	1.75 Lbs. (0.79 kg).
Shipping Weight	1.8 Lbs. (0.82 kg).

Documents and Downloads
