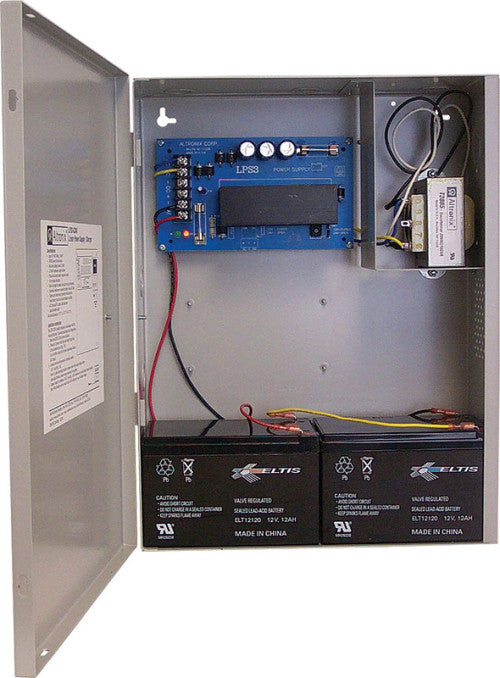

Altronix LPS3C24X | Linear Power Supply/Charger, Single Class 2 Output, AC Fail Supervision, 24VDC @ 2.5A, 115VAC, BC400 Enclosure

Enclosure

• Wall mount enclosure for indoor use.
• Accommodates up to two (2) 12VDC/12AH Batteries.
• Dimensions 12.25"W x 15.5"H x 4.5"D (311 mm W x 394 mm H x 114 mm D).
• 1.125" and 1.375" combination knockouts.

Input

• 115VAC 50/60Hz rated @ 0.7A.

Output

• 24VDC output.
• 2.5A continuous supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Battery

• Battery leads included.
• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails (zero voltage drop).
• Fused battery protection (circuit breaker available).

Visual Indicators

• AC/DC power LED indicator.

Electrical

• Temperature:
• Operating 0° C to 49° C (32° F to 120° F).
• Storage - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.): 31 BTU/Hr.

Weights (approximate)
