Brand: Altronix
|
SKU:
344955
Altronix LPS3WP12 | Linear Power Supply/Charger, Single Class 2 Output, 12VDC @ 2.5A, 115VAC, WP1 Enclosure
Regular price
$358.55
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Altronix LPS3WP12 | Linear Power Supply/Charger, Single Class 2 Out...
Regular price
$358.55
Unit price
Description
Description

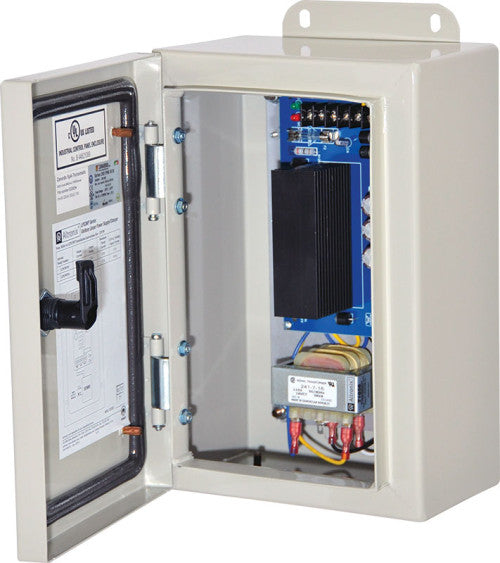

Altronix LPS3WP12 outdoor linear power supply/charger is specifically designed to provide the power needed by the most demanding security and access control applications. It converts a 115VAC 50/60Hz input to a 12VDC, 2.5A continuous output. Unit's unique NEMA 4 UL Listed enclosure allows installation next to the outdoor equipment it is designed to power.
Specifications
Specifications
Enclosure
- NEMA 4/IP 65 Rated enclosure for outdoor use.
- Dimensions 8"W x 12"H x 6"D (203.2 mm W x 304.8 mm H x 152.4 mm D).
Input
- 115VAC 50/60Hz rated @ 0.5A.
Output
- 12VDC output.
- 2.5A continuous supply current.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
Battery
- Built-in charger for sealed lead acid or gel type batteries.
- Automatic switch over to stand-by battery when AC fails (zero voltage drop).
- Fused battery protection (circuit breaker available).
Visual Indicators
- AC/DC power LED indicator.
Electrical
- Temperature:
- Operating 0° C to 49° C (32° F to 120° F).
- Storage - 20° C to 70° C ( - 4° F to 158° F).
- Relative Humidity 85% +/- 5%.
- BTU/Hr. (approx.): 15 BTU/Hr.
Weights (approximate)
| Product Weight | 12.55 Lbs. (5.69 kg). |
|---|---|
| Shipping Weight | 14 Lbs. (6.53 kg). |
